Removing Tuning Pipe

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove distributor pipe. To do this, remove the fastening nut M6 of the throttle body from the rubber mount of the servo pump -2- .
Release cable plug on throttle body, and pull out and release cable -1- .
Release crankcase venting pipe connection from distributor pipe and remove -3- .

Fig 1: Locating Throttle Body Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

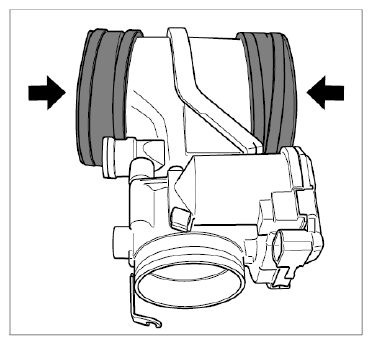

Loosen the four screw-type hose clamps on the rubber sleeves to the side intake distributors and push the rubber sleeves onto the distributor pipe -arrows- . Remove distributor pipe together with mounted throttle body. Remove distributor pipe from the engine compartment.

Fig 2: Locating Distributor Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before removing tuning pipe, a mark should be made with a felt-tip pen on the intake distributor, rubber sleeve and tuning pipe so that the position for re-installation is correct.
Loosen the four screw-type hose clamps of the tuning pipe on the rubber sleeves to the side intake distributors -arrows- and push the rubber sleeves onto the intake distributor pipe as far to the side as possible.

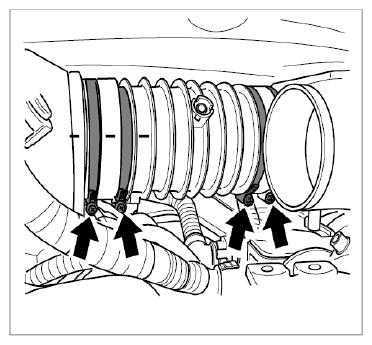

Fig 3: Locating Screw-Type Hose Clamps Of Tuning Pipe On Rubber Sleeves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull tuning pipe out of the rubber sleeves and remove vacuum hose from the rear vacuum modulator of the resonance flap. Remove tuning pipe from the engine compartment.

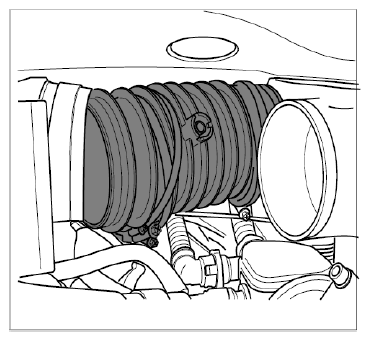

Fig 4: Removing Tuning Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
