Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery.
Remove air cleaner:
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Remove throttle housing.
→ 244219 REMOVING AND INSTALLING THROTTLE HOUSING .
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Information
- It may only be supported over a large area at the oil pan.
- Localized loading is not permitted.
Support engine using hydraulic floor jack H 2 SL WE 1032 and transmission jack plate of transmission jack VAG 1383 A WE 1082 at the oil pan.
1. 4.1. Loosen two M12 special nuts (inner Torx, screw insert T55) -1- at the engine mounting (hydraulic mount) on the left and right just until the engine can be lowered by around 15 mm.

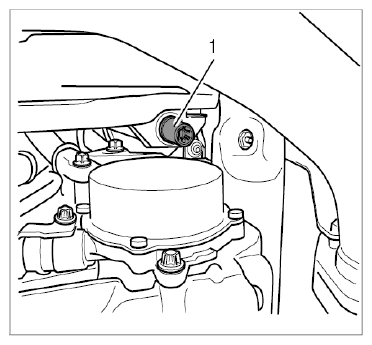

  Fig 1: Identifying Engine Carrier To Engine Mounting On Side 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- When lowering, the engine must not rest on the rear axle cross member.
Slowly lower the engine approximately 15 mm using the jack.
Release cable duct from the intake distributor on side 1-3.
1. 6.1. Unscrew the M6 Torx screw -1- at the intake distributor 1-3 to create better access to the left clamp.

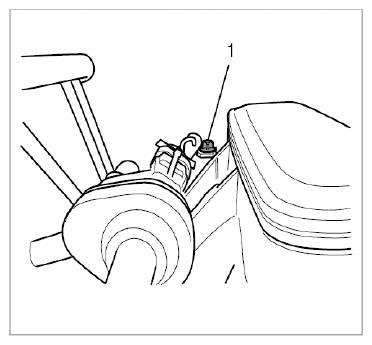

  Fig 2: Identifying Cable Duct Screw 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
