Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Raise engine into installation position with transmission jack.
Position M12 special nut (inner Torx, screw insert T55) -1- and tighten it to the tightening specification.
→ Tightening torque: 85 Nm (63 ft. lb.)

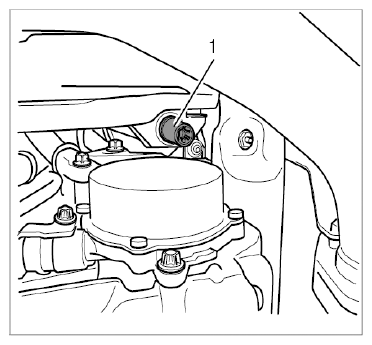

Fig 1: Identifying Engine Carrier To Engine Mounting (Cylinder Bank 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route oxygen sensor cable in engine compartment and secure in the retaining clips.
1. 3.1. Close plug connections and insert into the holders.
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Mount rear wheel.
→ 44051900 REMOVING AND INSTALLING WHEEL .
