Removing Lambda Sensor Downstream Of Catalytic Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Observe precautionary measures when working with lambda sensors.
→ 2400AW PRECAUTIONARY MEASURES WHEN HANDLING LAMBDA SENSORS .
Disconnect lambda sensor lines.

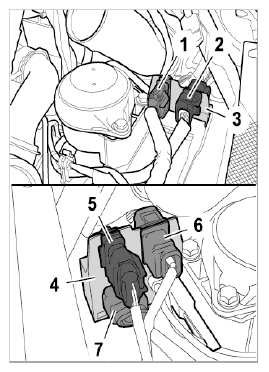

1. 2.1. Pull connector -1, 5- for the lambda sensor wire with the black boot out of the bracket -3, 4- and disconnect plug connections.

  Fig 1: Identifying Left/Right Lambda Sensor Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- Always expose oxygen sensor wire far enough for it to be able to turn when unscrewing the sensor.
Expose lambda sensor lines.

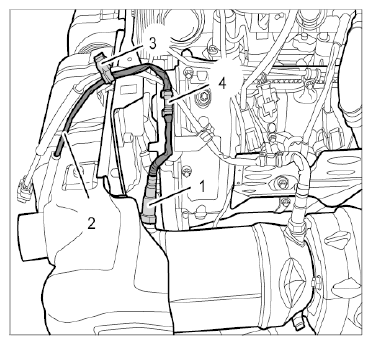

1. 3.1. Expose lambda sensor line on side 4-6.
  Unclip right lambda sensor line -2- (with the black boot) out of the brackets -3, 4- .

  Fig 2: Identifying Lambda Sensor Line Downstream Of Catalytic Converter On Side 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

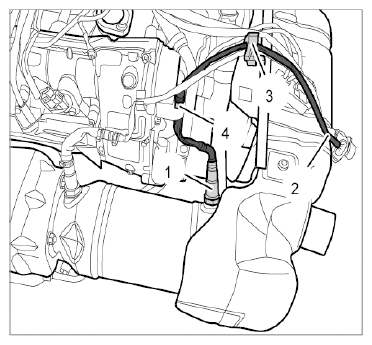

2. 3.2. Expose lambda sensor line on side 1-3.
  Unclip left lambda sensor line -2- (with the black boot) out of the brackets -3, 4- .

  Fig 3: Identifying Lambda Sensor Line Downstream Of Catalytic Converter On Side 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lambda sensors downstream of catalytic converter.
1. 4.1. Remove lambda sensor downstream of catalytic converter on side 4-6.

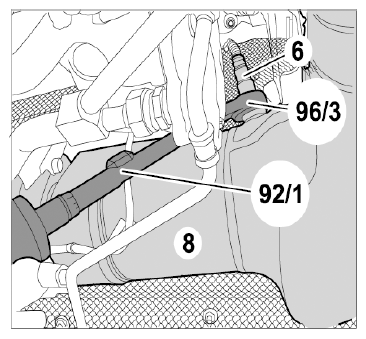

  Loosen and unscrew right lambda sensor -6- downstream of catalytic converter -8- using an open ring wrench Nr.96-3 and torque wrench Nr.92 Pos.1.

  Fig 4: Loosening Lambda Sensor Downstream Of Catalytic Converter On Side 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Remove lambda sensor downstream of catalytic converter on side 1-3.

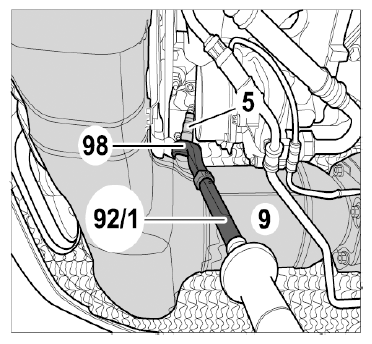

  Loosen and unscrew left lambda sensor -5- downstream of catalytic converter -9- using an open ring wrench Nr.98 and torque wrench Nr.92 Pos.1.

  Fig 5: Loosening Lambda Sensor Downstream Of Catalytic Converter On Side 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
