Installing Lambda Sensor Downstream Of Catalytic Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Observe precautionary measures when working with lambda sensors.
→ 2400AW PRECAUTIONARY MEASURES WHEN HANDLING LAMBDA SENSORS .

Information
- When reinstalling oxygen sensors, grease the thread with the Optimol Paste MF lubricant (Part No. 000.043.207.07) only.
- New oxygen sensors have already been greased and the thread is fitted with a protection cap.
Install lambda sensors.
1. 2.1. During reinstallation, the thread of the lambda sensors must be coated with the prescribed grease.
2. 2.2. Install lambda sensor on side 4-6.

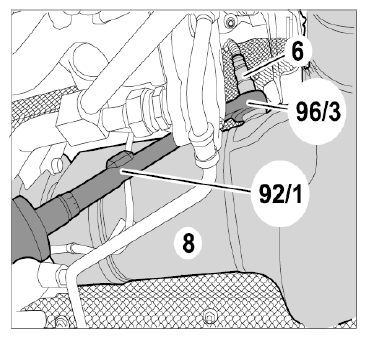

  Screw in lambda sensor -6- downstream of catalytic converter -8- . Then tighten it with the Open Ring Wrench Nr.98 and torque wrench Nr.92 Pos.1.

  → Tightening torque: 55 Nm (41 ft. lb.) +/-5 Nm (+/-3.5 ft. lb.)

  Fig 1: Tightening Lambda Sensor Downstream Of Catalytic Converter On Side 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lambda sensor on side 1-3.
1. 3.1. During reinstallation, the thread of the lambda sensors must be coated with the prescribed grease.

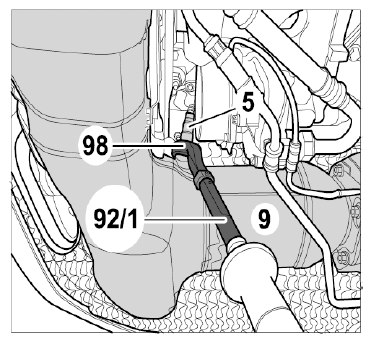

2. 3.2. Screw in lambda sensor -5- downstream of catalytic converter -9- . Then tighten it with the open ring wrench Nr.98 and torque wrench Nr.92 Pos.1.
  → Tightening torque: 55 Nm (41 ft. lb.) +/-5 Nm (+/-3.5 ft. lb.)

  Fig 2: Tightening Lambda Sensor Downstream Of Catalytic Converter On Side 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route lambda sensor lines.

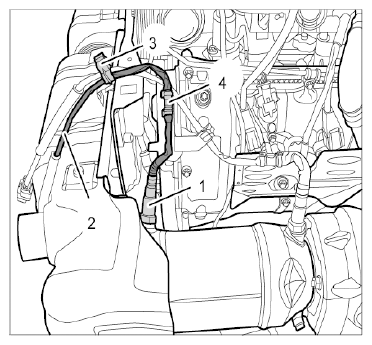

1. 4.1. Route lambda sensor line on side 4-6.
  Clip lambda sensor line -2- with the black boot into the brackets -3, 4- .

  Fig 3: Tightening Lambda Sensor Line Downstream Of Catalytic Converter On Side 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

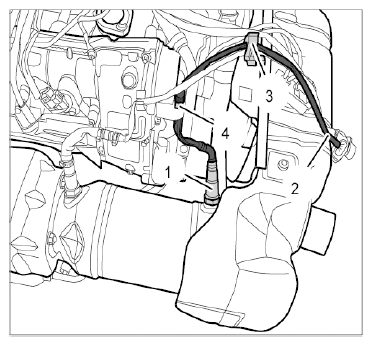

2. 4.2. Route lambda sensor line on side 1-3.
  Clip lambda sensor line -2- with the black boot into the brackets -3, 4- .

  Fig 4: Identifying Lambda Sensor Downstream Of Catalytic Converter On Side 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

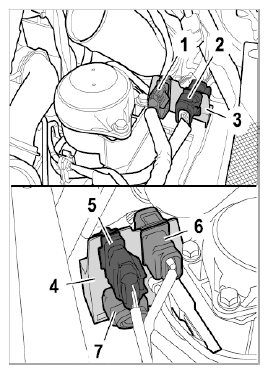

Connect lambda sensor lines.
Connect plug connections -1, 5- for lambda sensors with the black boot and insert into the bracket -3, 4- .

Fig 5: Disconnecting/Connecting Lambda Sensor Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
