Removing DME Control Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

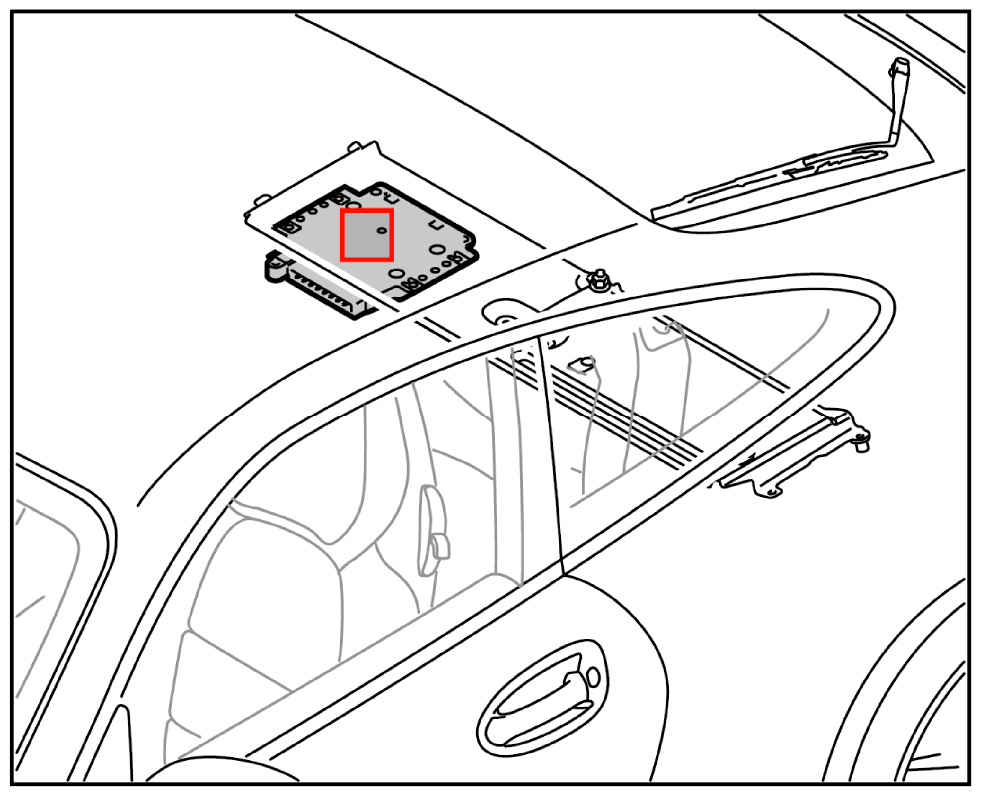

Fig 1: Identifying DME Control Unit (911)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fold the backrests of the rear seats forward.
Lift the carpet lining up and remove.
Unscrew fastening screw -1- and loosen fixing nut -2- .

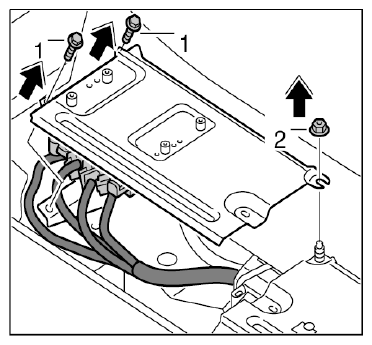

Fig 2: Loosening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn control module holder.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
Press in the connector -A- and pull it off the control unit.

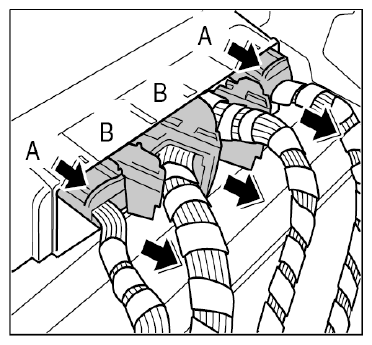

Fig 3: Releasing Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in plugs -B- lock and actuate the latching lever.
Unscrew the four fastening screws of the holder and remove the control module.
