Installing DME Control Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fasten the control module to the holder with the four fastening screws. → M6: 10 Nm (7.5 ft. lb.)
Push in plug -B- for DME control module and secure with the locking bar.

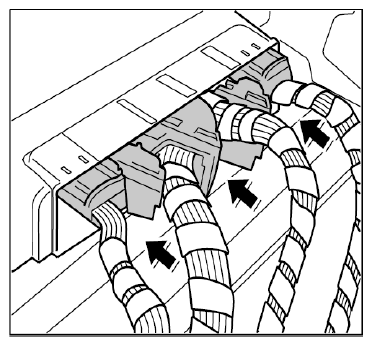

Fig 1: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in plugs -A- on the control module, until the connectors engage.
Turn the control module holder and push it in under the fastening nut -2- .

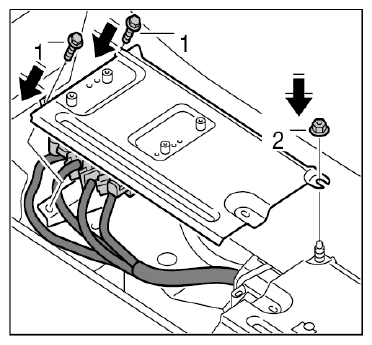

Fig 2: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten both fastening screws -1- and the fastening nut -2- . → M6: 10 Nm (7.5 ft. lb.) → M6: 10 Nm (7.5 ft. lb.)
