Installing DME (DFI) Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Plug in and lock the two electric connectors on the control unit -a- .

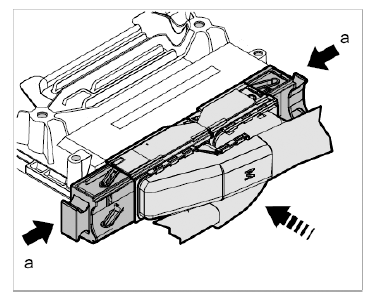

Fig 1: Installing And Locking Electric Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the control unit holder on the DFI control unit, position it and screw it down with the six fastening screws -2- .

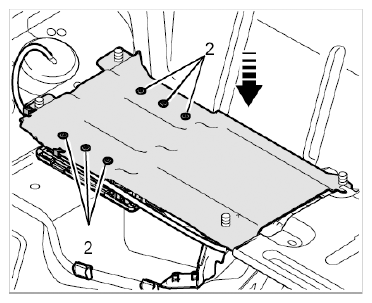

Fig 2: Fitting Control Unit On Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position holder with four-wheel drive control unit and secure with the four fastening nuts -4- .

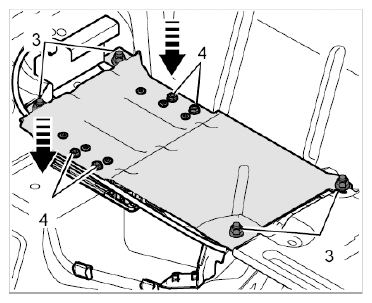

Fig 3: Installing Control Unit Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the control unit holder in the four fastening bolts on the body and screw on the four fastening nuts -3- .

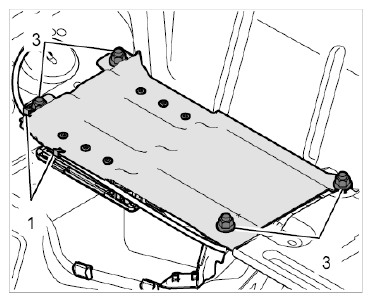

Fig 4: Securing Control Unit Holder To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide the two retaining clips -1- for the PASM electric line onto the control unit holder.
