Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

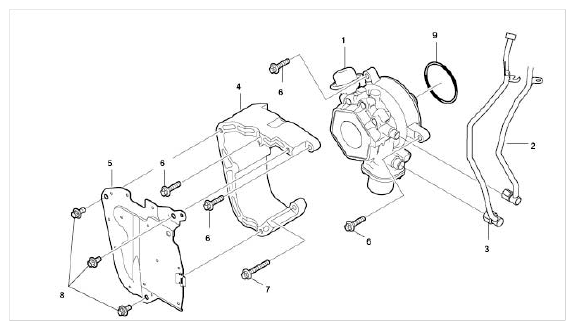

Fig 1: Overview Of High-Pressure Pump On Turbo Engine Component

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6-piston high-pressure pump
High-pressure line
Low-pressure line
Cover
Heat protection
External Torx screws, M6 x 25
External Torx screw, M6 x 40
External Torx screws, M6 x 12
O-ring - always replace

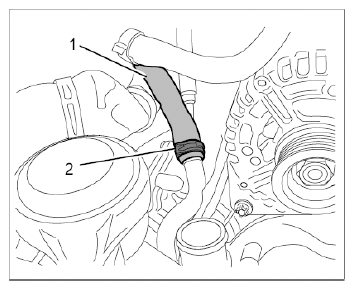

Disconnect supply hose for coolant pump.
1. 1.1. Open the spring band clamp -2- and pull off coolant hose -1- .

  Fig 2: Identifying Coolant Pump And Coolant Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

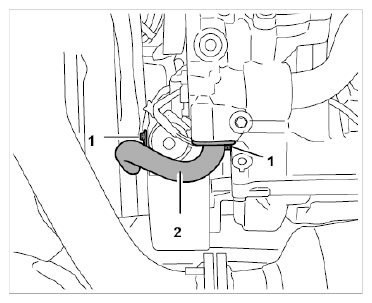

Remove coolant pipe.
1. 2.1. Unscrew external Torx screws (E10, M6 x 12) -1- and pull off coolant pipe -2- .

  Fig 3: Identifying Coolant Pipe Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

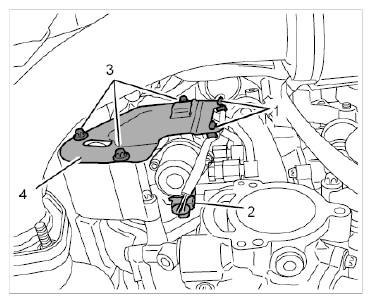

Remove heat protection panel for high-pressure pump.
1. 3.1. Disconnect cable plug for flow control valve -2- and unclip cable -2- .
2. 3.2. Unscrew three external Torx screws (E10, M6 x 12) -3- and remove heat protection panel -4- .

  Fig 4: Identifying High-Pressure Pump Heat Protection Panel (Naturally Aspirated Engine)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for high-pressure pump.
1. 4.1. Unscrew external Torx screws (E10) M6 x 25 -1- and (E10) M6 x 40 -2- .
2. 4.2. Guide out cover for high-pressure pump.

  Fig 5: Identifying High-Pressure Pump With Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information
- If the union nuts on the fuel lines at the high-pressure pump cannot be screwed off by hand after loosening them, the relevant line must be replaced.

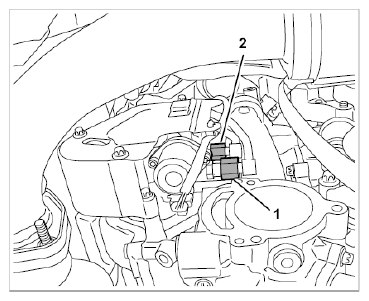

Remove fuel lines for high-pressure pump.
1. 5.1. Loosen union nut on fuel low-pressure line (a/f 17) -1- .

  Fig 6: Identifying High-Pressure Pump And Fuel Lines (Naturally Aspirated Engine)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Loosen union nut on fuel high-pressure line (a/f 14) -2- .
3. 5.3. Screw off union nuts by hand. If this is not possible, the relevant fuel line must be replaced.

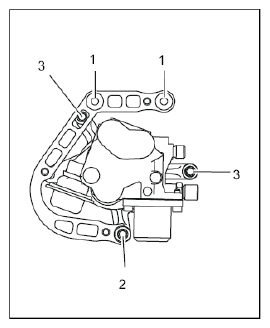

Remove high-pressure pump.
1. 6.1. Unscrew external Torx screws (E10, M6 x 25) -3- used to secure the high-pressure pump.
2. 6.2. Remove high-pressure pump.

  Fig 7: Identifying High-Pressure Pump With Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 6.3. Replace O-ring.
Clean sealing faces on cylinder head.
