Installing High-Pressure Pump
- Emerging fuel
- Risk of fire
→ Perform leak test.
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
- Tools for fitting fuel lines:
- 1.1. Tool set 1:
Torque wrench with 3/8-inch head
Short 3/8-inch extension
Crow foot wrench Nr.195 , a/f 17
Crow Foot Wrench Nr.195-1 , a/f 14

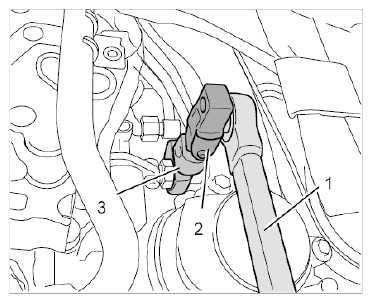

- 1.2. Tool set 2: Position of adapter with joint with respect to torque wrench: 90°
- Torque wrench with 3/8-inch head
- Insert Adapter With Joint Nr.98-1 Pos.3
- Open-Jawed Wrench Insert Nr.95 Pos.1 or Open-Jawed Wrench Insert Nr.95 Pos.2
Tightening sequence for high-pressure pump:
Information
Before installing the high-pressure pump, check the position of the driver and move it into installation position by hand if necessary.
Information
Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
- 1.1. Tool set 1:
- Fit high-pressure pump.
- 2.1. Replace sealing ring on high-pressure pump and grease with the prescribed lubricant.
- 2.2. Position high-pressure pump. Position driver for mounting on the outlet camshaft.
There is no defined driver position required as on naturally aspirated engines!
- 2.3. Fit external Torx screws (E10, M6 x 25) -1 and 2-
and tighten to the prescribed torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
Information
- Always perform a leak test in the high-pressure area after opening the fuel system.
- This is particularly important if components are disassembled and replaced.
- The threaded connections of the fuel lines must be coated with OKS 1710 lubricant (Part No. 000.043.303.27) before being screwed back on again.
- Always allow a drying time of 60 minutes for the lubricant!
- Blow residual fuel out of the lines and high-pressure pump (into a fuel-resistant container or cloth) using compressed air before installation.
- The tightening specifications must be strictly observed.
- Fit fuel lines on the high-pressure pump using a suitable tool.
- 3.1. Coat union nuts on fuel lines, cone and high-pressure pump screw sockets with lubricant OKS 1700.

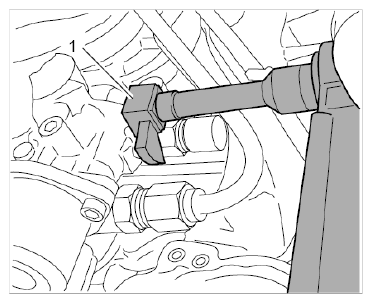

- 3.2. Screw on union nut for fuel high-pressure line (a/f 14) -2- by hand and then tighten it. → Tightening torque: 20 Nm (15 ft. lb.)
- 3.3. Screw on union nut for fuel low-pressure line (a/f 17) -1- by hand and tighten it. → Tightening torque: 20 Nm (15 ft. lb.)
- Perform leak test.
→ 200101 CHECKING FUEL SYSTEM (HIGH-PRESSURE SIDE) FOR LEAKS - TURBO ENGINE .
- Fit cover for high-pressure pump.
- 5.1. Guide in cover for high-pressure pump.

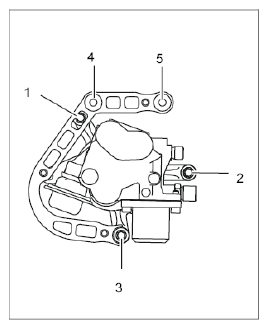

- 5.2. Screw in external Torx screws (E10) M6 x 40 -3-
and (E10) M6 x 25 -4 and 5-
and tighten to the prescribed tightening torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Fit heat protection panel for high-pressure pump.

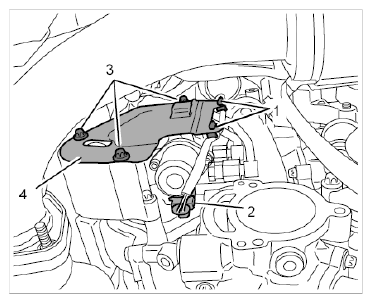

- 6.1. Position heat protection panel -4-
, screw in three external Torx screws (E10, M6 x 12) -3-
and tighten to the prescribed torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)

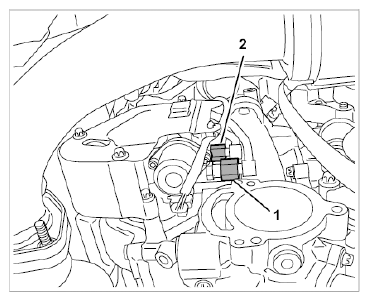

- 6.2. Insert cable plug for flow control valve -2- and clip in cable -1- .
Information
- Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
- 6.1. Position heat protection panel -4-
, screw in three external Torx screws (E10, M6 x 12) -3-
and tighten to the prescribed torque.
- Fit coolant pipe.
- 7.1. Replace sealing ring on coolant pipe and grease with the prescribed lubricant.

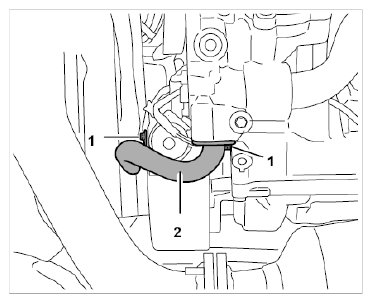

- 7.2. Position coolant pipe -2-
, screw in external Torx screws (E10, M6 x 12) -1-
and tighten to the prescribed tightening torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Fit supply hose for coolant pump.

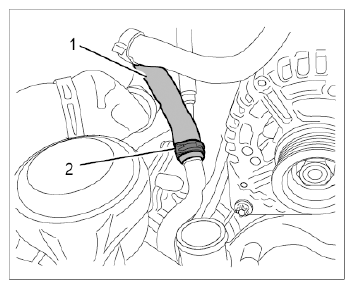

- 8.1. Push on coolant hose -1- and fit the spring band clamp -2- .
