Installing High-Pressure Pump
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.

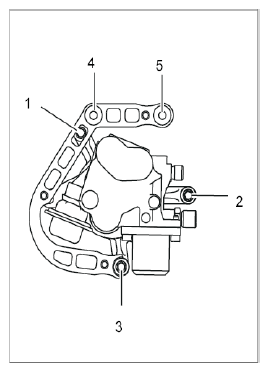

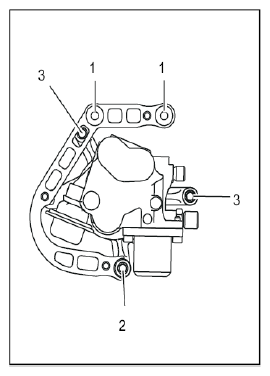

Tightening sequence for high-pressure pump:
- When refitting the high-pressure pump, install it at its original position (rotor position as marked during removal).
Information
Before installing the high-pressure pump, check the position of the driver and move it into installation position by hand if necessary.
- Position driver for high-pressure pump.
- 2.1. Check position of the outlet sprocket.

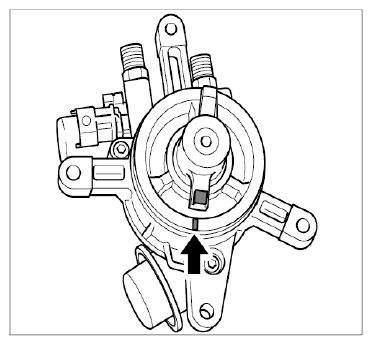

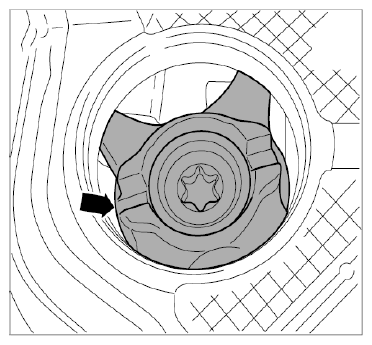

It is important that the deep groove is approx. 13.5 mm -arrow-
- 2.2. Turn the driver so that the high driving journal is flush with the deeper recess.
- Driver

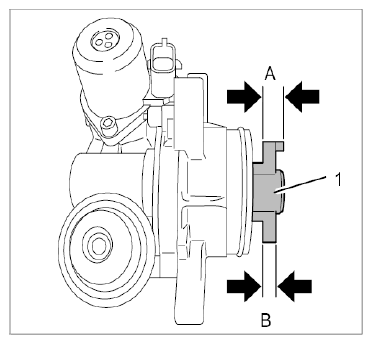

- Dimension A = 11.5 mm
- Dimension B = 7 mm
Information
Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
- 2.1. Check position of the outlet sprocket.
- Fit high-pressure pump.
- 3.1. Replace sealing ring on high-pressure pump and grease with the prescribed lubricant.

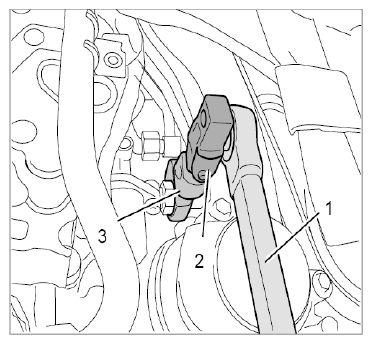

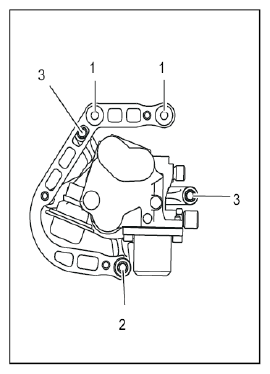

- 3.2. Fit two external Torx screws (E10, M6 x 25) -3-
and tighten to the prescribed torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Tools for fitting fuel lines (two alternatives):
- 4.1. Tool set 1:
Torque wrench with 3/8-inch head
Short 3/8-inch extension
Crow foot wrench Nr.195, a/f 17
Crow foot wrench Nr.195-1, a/f 14
- 4.2. Tool set 2: Position of adapter with joint with respect to torque wrench: 90°
- Torque wrench with 3/8-inch head
- Insert Adapter With Joint Nr.98-1 Pos.3
- Open-Jawed Wrench Insert Nr.95 Pos.1 Or Open-Jawed Wrench Insert Nr.95 Pos.2
Information
- Always perform a leak test in the high-pressure area after opening the fuel system.
- This is particularly important if components are disassembled and replaced.
- The threaded connections of the fuel lines must be coated with OKS 1710 lubricant (Part No. 000.043.303.27) before being screwed back on again.
- Always allow a drying time of 60 minutes for the lubricant!
- Blow residual fuel out of the lines and high-pressure pump (into a fuel-resistant container or cloth) using compressed air before installation.
- The tightening specifications must be strictly observed.
- 4.1. Tool set 1:

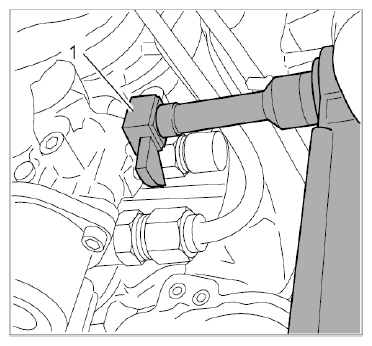

- Fit fuel lines on high-pressure pump.
- 5.1. Coat union nuts on fuel lines, cone and high-pressure pump screw sockets with lubricant OKS 1700.
- 5.2. Fit union nut on fuel high-pressure line by hand and then tighten it.
→ Tightening torque: 20 Nm (15 ft. lb.)
- 5.3. Fit union nut (a/f 14) on fuel low-pressure line by hand and tighten it.
→ Tightening torque: 20 Nm (15 ft. lb.)
WARNING: Leaking fuel supply lines- Emerging fuel
- Risk of fire
→ Perform leak test.
- Perform leak test.
→ 200101 CHECKING FUEL SYSTEM (HIGH-PRESSURE SIDE) FOR LEAKS
- Fit cover for high-pressure pump.
- 7.1. Fit external Torx screws (E10) M6 x 25 -1-
and M6 x 40 -2-
and tighten to the prescribed torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 7.1. Fit external Torx screws (E10) M6 x 25 -1-
and M6 x 40 -2-
and tighten to the prescribed torque.
- Fit heat protection panel for high-pressure pump.

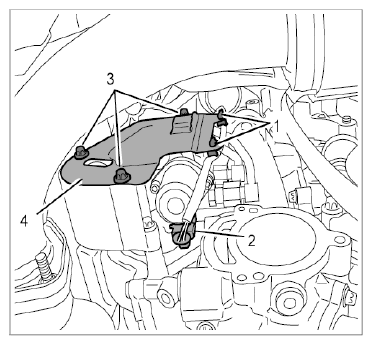

- 8.1. Position heat protection panel -4-
, screw in three external Torx screws (E10, M6 x 12) -3-
and tighten to the prescribed torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 8.2. Insert cable plug for flow control valve -2- and clip in cable -1- .
Information
- Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
- 8.1. Position heat protection panel -4-
, screw in three external Torx screws (E10, M6 x 12) -3-
and tighten to the prescribed torque.
- Fit coolant pipe.
- 9.1. Replace sealing rings and grease with the prescribed lubricant.
- 9.2. Position coolant pipe -2-
, fit external Torx screws (E10, M6 x 12) -1-
and tighten to the prescribed torque.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Fit supply hose for coolant line.

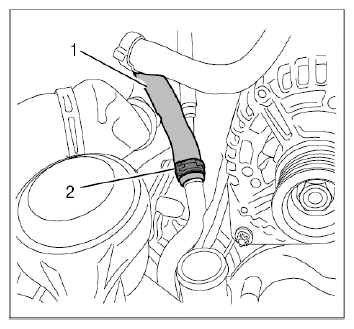

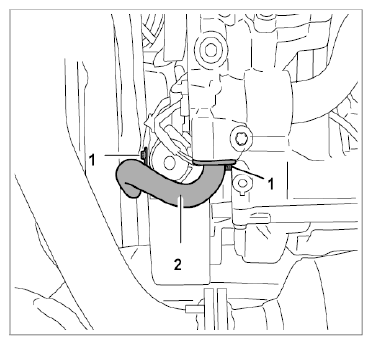

- 10.1. Attach coolant hose -1- and tighten spring band clamp -2- .
