Install Intake Manifold - (Cylinder Bank 4-6)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

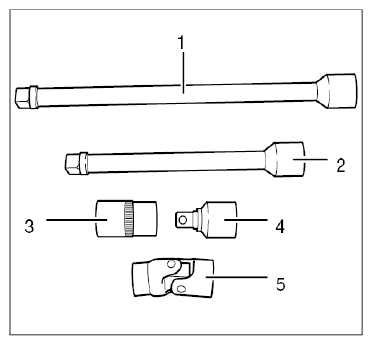

Recommended tool for screw connections on intake manifold (designation Hazett):
1. Extension, 147 mm, 1/4 inch
2. Extension, 101.5 mm, 1/4 inch
3. Torx socket-wrench insert E10, 1/4 inch
4. Pivoting extension, 25 mm, 1/4 inch
5. Torx flexible-head socket-wrench insert E10

  Fig 1: Identifying Recommended Tools For Screw Connections On Intake Manifold
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).

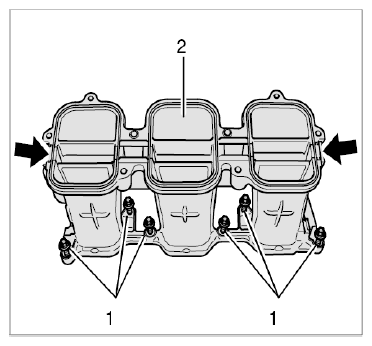

Prepare intake manifold -2- for installation.
1. 2.1. Attach new tie-wrap for wire harness to bracket.
2. 2.2. Fit new seals. Coat molded seals to cylinder head lightly with the specified lubricant.
3. 2.3. Insert six M6 x 25 outer Torx screws (E10) -1- .

  Fig 2: Locating Intake Manifold
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

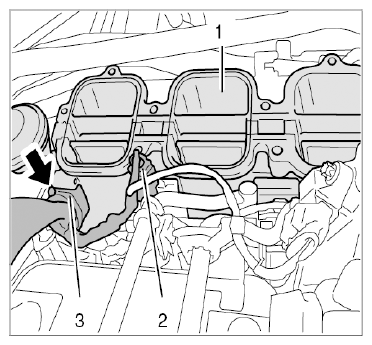

Install intake manifold -1- with new seals.
1. 3.1. Remove covers from the intake ports.
2. 3.2. Position intake manifold and fit six outer Torx screws in sequence.
3. 3.3. Tighten the screws.
  → Tightening torque: 13 Nm (9.5 ft. lb.).
4. 3.4. Connect cable plug -2- for high-pressure sensor.
5. 3.5. Align wire harness -3- .
6. 3.6. Connect vacuum line to vacuum unit.

  Fig 3: Locating Intake Manifold And Cylinder Bank (4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

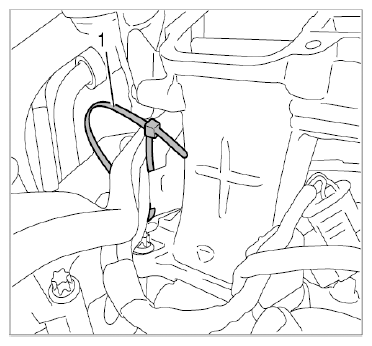

Fasten wire harness with new tie-wrap -1- .

Fig 4: Fastening Wire Harness With Tie-Wrap (Bank 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

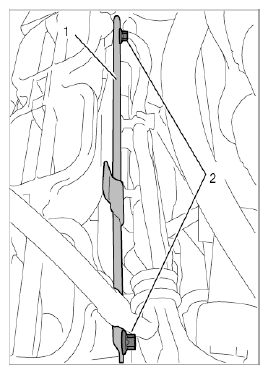

Fasten lateral bracket -1- for wire harness with two M6 x 12 external Torx screws (E10) -2- .
1. 5.1. Tighten the screws.
  → Tightening torque: 10 Nm (7.4 ft. lb.).

  Fig 5: Identifying Wire Harness Bracket And Cylinder Bank 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
