Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intake-air distributor, bank 1-3
  2. Connecting strips (with M6 x 12 external Torx screws).
  3. Central intake-air distributor
  4. Intake-air distributor, bank 4-6
  5. Replace O-rings.

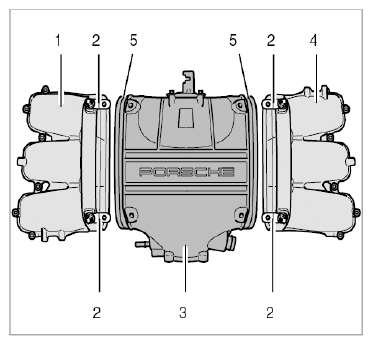

    Fig 1: Overview Of Intake-Air Distributor Component (X51)
    G09828848Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Detach inner connecting strips.
    1. 1.1. Unscrew four M6 external Torx screws (E10) on the central intake-air distributor.
  2. Detach intake-air distributor 1-3 and 4-6 from the center section.
  3. Replace O-rings on the central intake-air distributor and replace.
  4. Clean components.
