Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intake-air distributor, bank 1-3
  2. Connecting strips (with M6 x 12 external Torx screws).
  3. Central intake-air distributor
  4. Intake-air distributor, bank 4-6
  5. Replace O-rings.

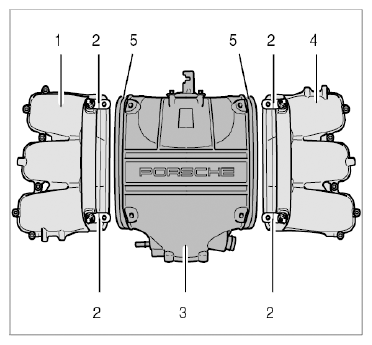

    Fig 1: Overview Of Intake-Air Distributor Component (X51)
    G09828849Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fit new O-rings on the center intake air distributor section and coat lightly with Kluber Syntheso Glep (Part No. 000.043.204.68)
  2. Assemble the individual parts of the intake-air distributor and fasten by means of the connecting strips.
    1. 2.1. Insert four M6 x 12 external Torx screws (E10) from inside (slots in connecting strips).

      Tighten screws only following installation of the intake-air distributor.
