Removing Center Intake-Air Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transverse strut.
Unscrew M6 screws and remove transverse strut -1- .

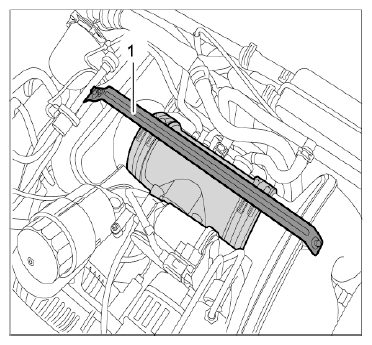

Fig 1: Identifying Transverse Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect line connections from the intake-air distributor -2, 3, 4, 5- .

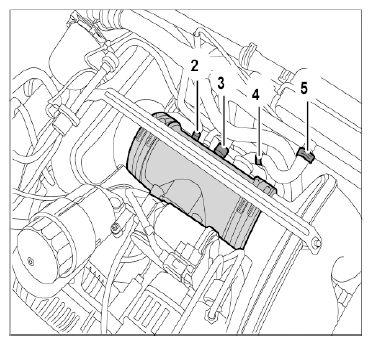

Fig 2: Identifying Centre Intake-Air Distributor Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove center intake-air distributor.
1. 3.1. Remove holder -6- .

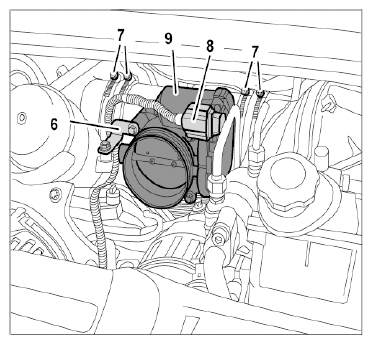

  Fig 3: Identifying Centre Intake-Air Distributor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Pull off cable plugs -8- .
3. 3.3. Loosen hose band clamps -7- and move rubber sleeves outwards. Remove center intake-air distributor -9- .
