Installing Centre Intake-Air Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install center intake-air distributor.

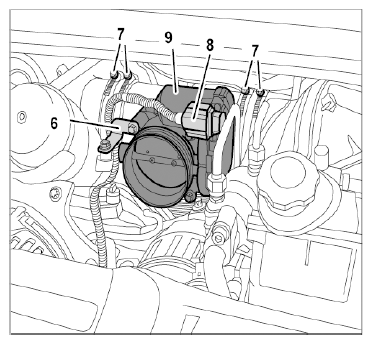

1. 1.1. Insert center intake-air distributor. Push rubber sleeves inwards and then position them. Tighten hose band clamps -7- .

  Fig 1: Identifying Centre Intake-Air Distributor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Push on cable plug -8- .
3. 1.3. Install holder -6- .
Connect line connections to the center intake-air distributor.

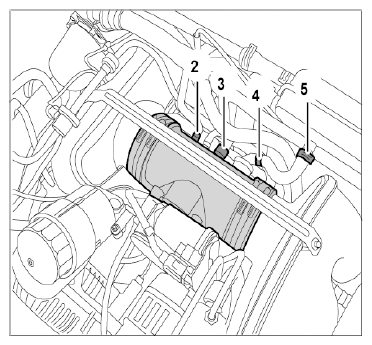

Connect line connections -2, 3, 4, 5- to the center intake-air distributor.

Fig 2: Identifying Centre Intake-Air Distributor Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install the transverse strut.

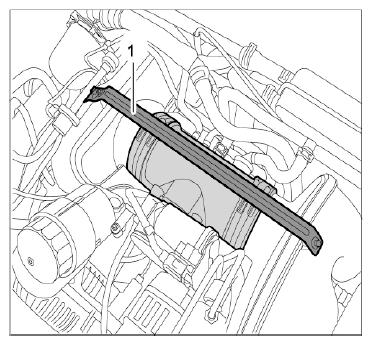

Position transverse strut -1- , screw in and tighten screws.

→ Tightening torque: 10 Nm (7.5 ft. lb.)

Fig 3: Identifying Transverse Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
