Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

It may only be supported over a large area at the oil pan.
Localized loading is not permitted.

Information

When lowering, the engine must not rest on the rear axle cross member.

Raise the engine.
1. 1.1. Support the engine at the oil pan using the hydraulic jack HH2 WE 1033 and transmission jack plate of transmission jack VAG 1383 A WE 1082 .
2. 1.2. Alternative to transmission jack plate:
  Screw on the mounting peg 9163/2 in the middle using a wooden board (40 x 30 cm) and use it as a support.

  → Mounting peg

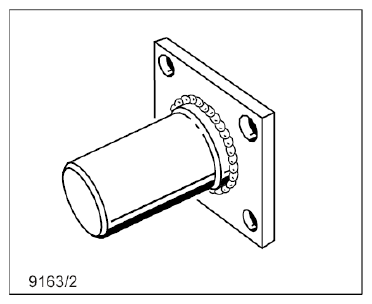

  Fig 1: Identifying Mounting Peg
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Slowly lift the engine with the hydraulic jack.

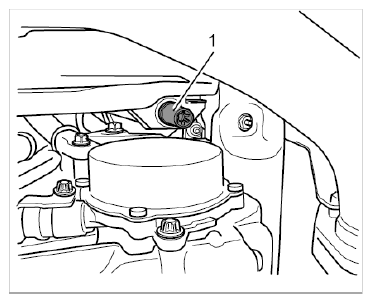

  Fig 2: Identifying Engine Carrier To Engine Mounting (Cylinder Bank 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Tighten two special M12 nuts (internal Torx, screw insert T55) -1- on the engine mounting (hydraulic mount) at the left and right.
  → Tightening torque: 85 Nm (63 ft. lb.)
Install tailpipe covers.
→ 263519 REMOVING AND INSTALLING TAILPIPE COVER - TURBO .
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - TURBO .
