Component Overview 2: Intake-Air Distributor Disassembled

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

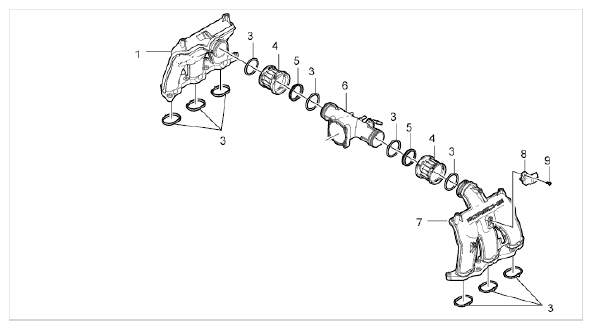

Fig 1: Overview Of Intake-Air Distributor Component 2

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake-air distributor 1-3
Molded seal, replace following removal
Sealing ring, replace following disassembly
Bayonet sleeve
Sealing ring, replace following disassembly
Centre part of intake-air distributor
Intake-air distributor 4-6
Intake air sensor
Fastening screw (self-tapping)

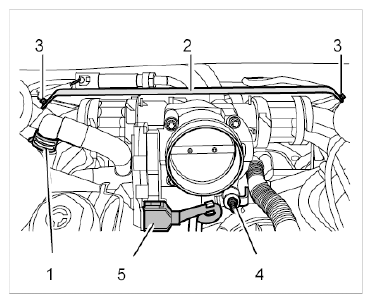

Disconnect crankcase vent line, support elements on the intake-air distributor and cable plug for electronic accelerator.
1. 1.1. Disconnect crankcase vent line -1- .
2. 1.2. Remove strut -2- by unscrewing two external Torx screws (E10, M x 12) -3- .
3. 1.3. Remove throttle housing support by loosening one M6 hexagon nut -4- .
4. 1.4. Pull off cable plug -5- for electronic accelerator.

  Fig 2: Identifying Support Elements On Centre Intake-Air Distributor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

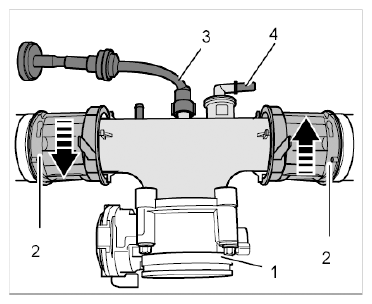

Remove center part of intake-air distributor.
1. Throttle housing
2. Bayonet sleeve
3. Tank ventilation line
4. Positive crankcase ventilation connection

  Fig 3: Removing Centre Part Of Intake-Air Distributor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Open bayonet sleeves -2- for the center part in -direction of arrow- .

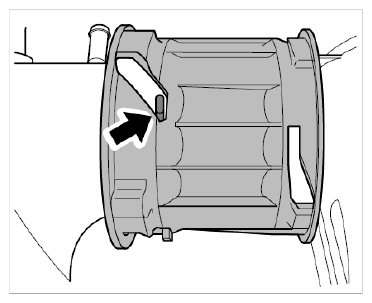

2. 2.2. View with inner locking lug open -arrow- .

  Fig 4: Identifying Bayonet Lock Open
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Disconnect vacuum lines -3 and 4- on the back and remove center part.
Replace all seals (see COMPONENT OVERVIEW ).
