Component Overview 1

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

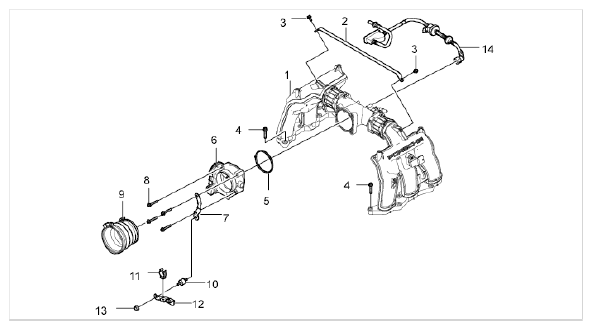

Fig 1: Overview Of Intake-Air Distributor Component 1
G09828697Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake-air distributor assembly
  2. Strut
  3. External Torx screw (E10, M6 x 12)
  4. External Torx screw (E10), M6 x 35
  5. Seal for throttle housing, replace following disassembly
  6. Throttle housing
  7. Throttle housing support
  8. External Torx screw (E10, M6 x 50)
  9. Rubber shroud
  10. Decoupling element
  11. Clip for crankcase vent line
  12. Holder
  13. Hexagon nut, M6
  14. Tank vent
