Installing Intake-Air Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always replace gaskets and O-rings.

Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).

Lightly grease sealing rings with the prescribed lubricant.
Install center part of intake-air distributor.
1. 2.1. Fit center part and connect vacuum lines -3 and 4- .
2. 2.2. Position bayonet sleeves -2- at the sides of the intake-air distributors and close them -direction of arrow- .

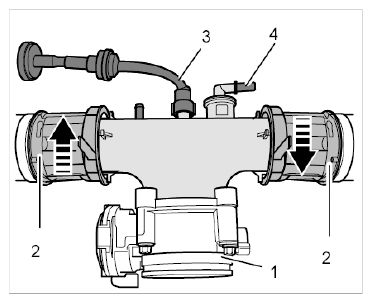

  Fig 1: Installing Centre Part Of Intake-Air Distributor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
View of bayonet sleeve (outer locking lug) in closed position -arrow- .

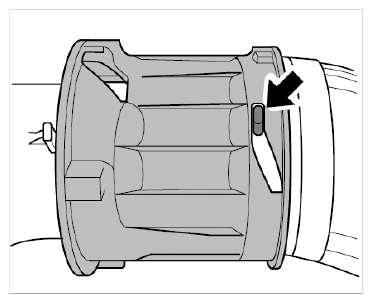

Fig 2: Identifying Bayonet Lock Closed
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure support elements for intake-air distributor and plug in cable plug for electronic accelerator and positive crankcase ventilation line.
1. 4.1. Secure throttle housing support by tightening one M6 hexagon nut -4- .
  → Tightening torque: 6 Nm (4.5 ft. lb.)
2. 4.2. Plug in cable plug -5- for electronic accelerator.
3. 4.3. Fit strut -2- for intake-air distributor. Tighten two external Torx screws (E10, M6 x 12) -3- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
4. 4.4. Connect positive crankcase ventilation line -1- .

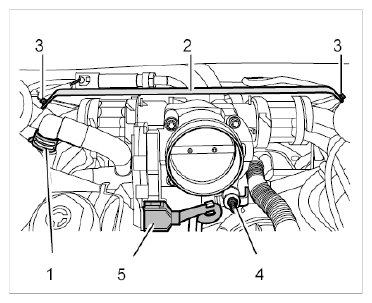

  Fig 3: Identifying Supporting Elements On Centre Intake-Air Distributor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
