Removing Intake-Air Distributor, Side 4-6

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

• Torx screws: (E..) for external Torx, (T..) for internal Torx.
• Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

1. Remove holder for oil filler neck.

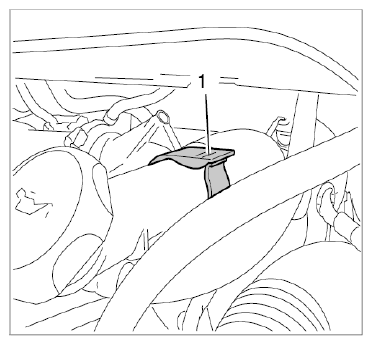

   1. 1.1. Open the holder at the top -1-  by unclipping the locking mechanism.
      Fig 1: Identifying Latch On Oil Filler Neck Holder (Top)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

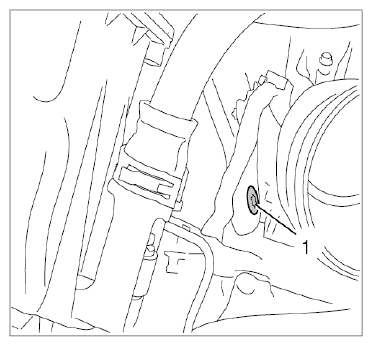

   2. 1.2. Unscrew one internal Torx screw (T27, M6 x 12) -1-  at the top of the intake-air distributor.
      Fig 2: Identifying Filler Neck Holder Fastening Screw (Top)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Unscrew the second internal Torx screw (T27, M6 x 12) -1-  between the intake air line and bottom of intake-air distributor.
      Fig 3: Identifying Filler Neck Holder Fastening Screw (Bottom)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. On vehicles with air conditioning, disconnect air-conditioning compressor and accessories.

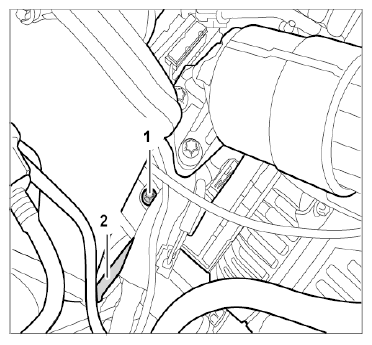

   1. 2.1. Loosen fuel line -2-  at the fastening point -1-  .
      Fig 4: Identifying Fuel Line

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

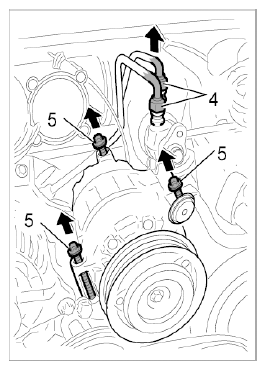

   2. 2.2. Disconnect the fuel lines -4-  on the fuel cooler. Counter at the fuel cooler (a/f 14) when loosening the union nuts.
      Fig 5: Disconnecting Fuel Lines On Fuel Cooler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

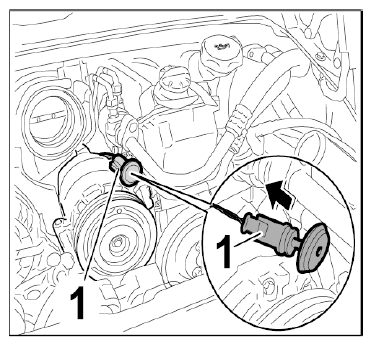

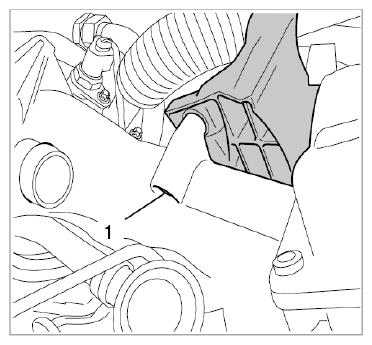

   3. 2.3. Pull engine compartment temperature sensor -1-  out of the rubber holder.
      Fig 6: Pulling Engine Compartment Temperature Sensor

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 2.4. Disconnect the compressor. Unscrew three M8 screws -5-  to do this.
   5. 2.5. Carefully lift off the compressor and place it to one side together with the refrigerant lines (use protective surface). Secure with a tie-wrap to prevent them from slipping, if necessary.
3. Disconnect and expose the engine wire harness at the transfer point.

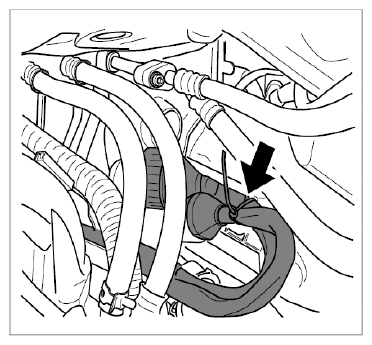

   1. 3.1. Cut tie-wrap -arrow-  .
      Fig 7: Locating Engine Wire Harness

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

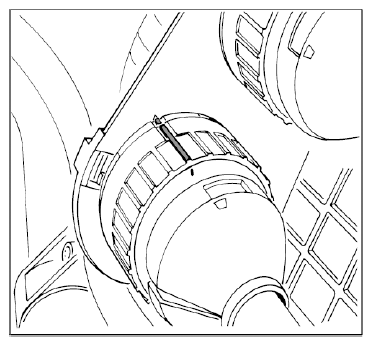

   2. 3.2. Open round connectors on engine wire harness.

      To do this, turn bayonet lock anticlockwise and pull off.

      Fig 8: Identifying Engine Wire Harness Round Connectors

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

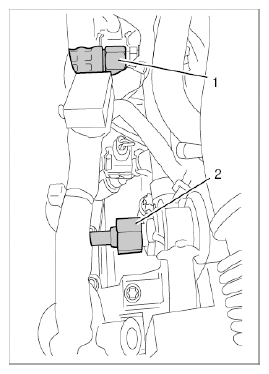

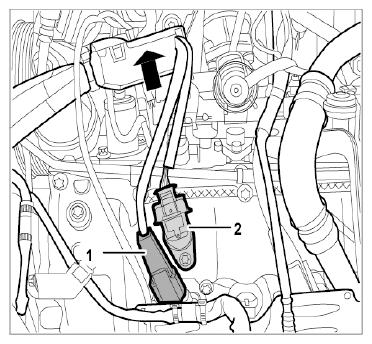

   3. 3.3. Unplug cable plug for ignition coil on cylinder 4 -1-  .

      Pull cable plug -2-  off the camshaft sensor.

      Fig 9: Pulling Cable Rail And Cable Plug, Side 4-6

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 3.4. Pull cable rail up off the fuel collection pipe -arrow-  .
4. Disconnect fuel collection pipe with fuel injectors 4-6.
   1. 4.1. Loosen both fuel lines (a/f 17) -1 and 2-  and make sure to counter when doing this (a/f 19).
      Fig 10: Identifying Fuel Collection Pipe And Fuel Lines (Side 4-6)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

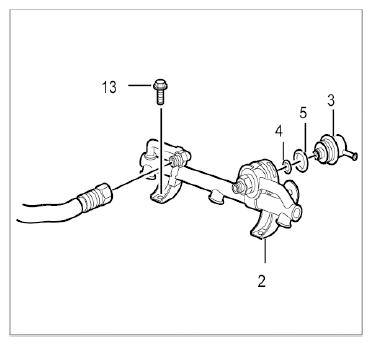

   2. 4.2. Unscrew two external Torx screws (M6 x 12) -13-  .
   3. 4.3. Pull fuel collection pipe -2-  with fuel injectors 4-6 off the intake-air distributor.
   4. 4.4. Disconnect cable plug for fuel injectors 4-6.
   5. 4.5. Move the fuel collection pipe -2-  as far as possible to the side.
      Fig 11: Identifying Fuel Collection Pipe And Fuel Injectors (Side 4-6)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove intake-air distributor, side 4-6.

   Use a 5-mm socket-wrench insert with a ball joint to loosen hidden screws and a bar magnet to pull them out.

   1. 5.1. Unscrew six hexagon socket head bolts (a/f 5, M6 x 25) and remove the intake-air distributor.

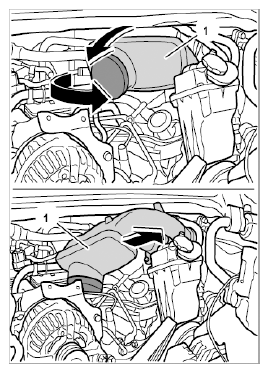

   2. 5.2. Lift up the intake-air distributor -1-  and turn it slightly until it is free, then remove it over the hydraulic pump.
   3. 5.3. Replace molded seals.
      Fig 12: Turning Right Intake-Air Distributor

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Clean fuel injectors in an ultrasound bath.
   1. 6.1. To do this, remove spring clamps and pull the fuel injectors out of the fuel collection pipe one at a time.
   2. 6.2. Before cleaning the fuel injectors, mark them with a water-resistant marker to facilitate re-installation.
7. Replace O-rings on the fuel injectors.
