Removing Center Intake-Air Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove strut -1- .
1. 1.1. Unscrew two external Torx screws (M6 x 12) -2- and remove the strut.
2. 1.2. Loosen screw-type clamps -3- and move the rubber sleeves to the side so that the center part is positioned loosely on the engine.

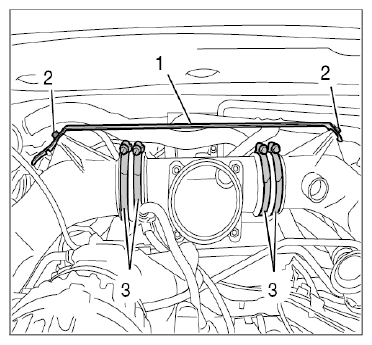

  Fig 1: Identifying Centre Intake-Air Distributor And Screw-Type Clamps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect vacuum lines at the rear of the center part (swivel the component down slightly to do this).
1. 2.1. Cut two single-lug clips -1 and 2- and open the rapid-action coupling -3- and spring band clamp -4- .
2. 2.2. Use new single-lug clips during assembly.

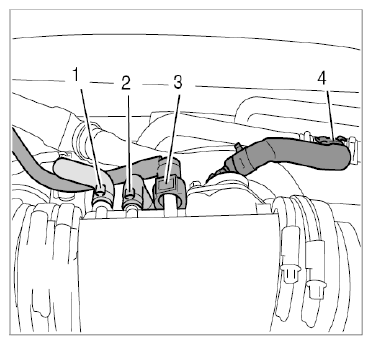

  Fig 2: Identifying Centre Intake-Air Distributor Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove center intake-air distributor from the engine compartment.
