Installing Intake-Air Distributor, Side 4-6
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
Information
Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
- Prepare intake-air distributor for installation.
- 1.1. Clean sealing surfaces on the intake-air distributor and crankcase.

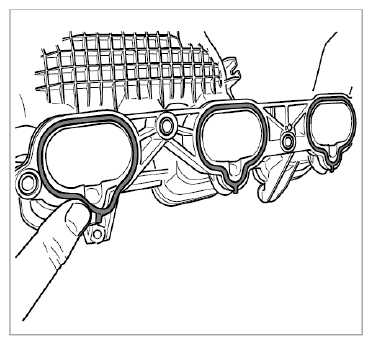

- 1.2. Fit new molded seals on the intake-air distributor. Then grease them with Kluber Syntheso Glep.
- Prepare fuel collection pipe with fuel injectors for installation.
- 2.1. Fit new O-rings on fuel injectors. Grease O-rings lightly with VP 881 (Porsche Part No.: 000.043.207.35).
- 2.2. Fit fuel injectors into the fuel collection pipe according to the marking and secure them with spring clamps.

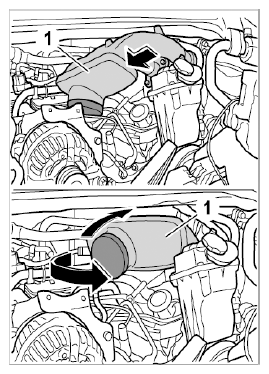

- Install intake-air distributor on side 4-6 -1-
.
Use a bar magnet to fit hidden screws and a 5-mm socket-wrench insert with a ball joint to tighten them.
- 3.1. Guide in the right intake-air distributor, turn it slightly and fit it on the cylinder head. Then fit and tighten screws.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 3.1. Guide in the right intake-air distributor, turn it slightly and fit it on the cylinder head. Then fit and tighten screws.

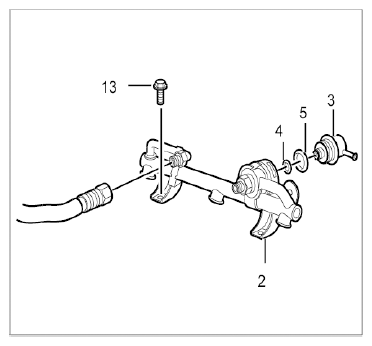

- Install fuel collection pipe with fuel injectors on side 4-6.
- 4.1. Position the fuel collection pipe -2- with fuel injectors in the intake-air distributor.
- 4.2. Fit and tighten two external Torx screws (E10, M6 x 12) -13-
.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- Fit fuel lines.

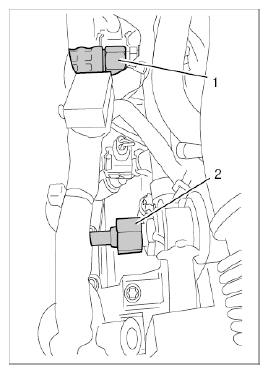

- 5.1. Screw union nut on fuel line (a/f 19) -1-
onto the fuel collection pipe and tighten it. Always counter while doing this (a/f 17).
→ Tightening torque: 30 Nm (22 ft. lb.)
- 5.2. Screw the fuel line -2-
onto the pressure regulator and tighten it. Counter at the pressure regulator while doing this (a/f 22).
→ Tightening torque: 30 Nm (22 ft. lb.)
- 5.1. Screw union nut on fuel line (a/f 19) -1-
onto the fuel collection pipe and tighten it. Always counter while doing this (a/f 17).

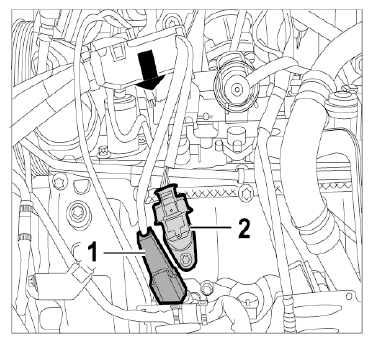

- Fit the cable guide.
- 6.1. Connect cable plug to the fuel injectors 4-6.
- 6.2. Connect cable plug for ignition coil on cylinder 4 -1- .
- 6.3. Connect cable plug -2- for hall sender.
- 6.4. Clip on cable guide at the fuel collection pipe -arrow- .
- Fit the engine wire harness and secure with a tie-wrap.

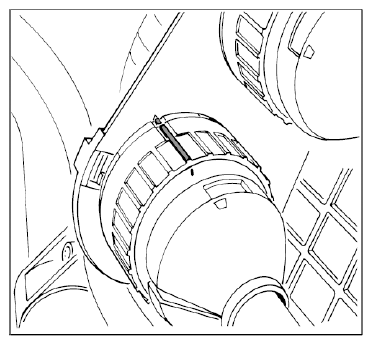

- 7.1. Connect engine wire harness. Fit round connector onto connector bracket and turn clockwise until it reaches the locking point.

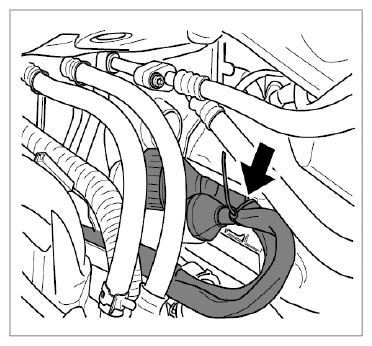

- 7.2. Secure engine wire harness with a tie-wrap -arrow- .

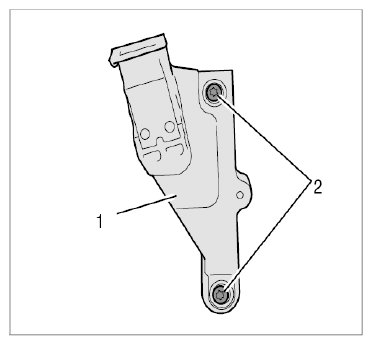

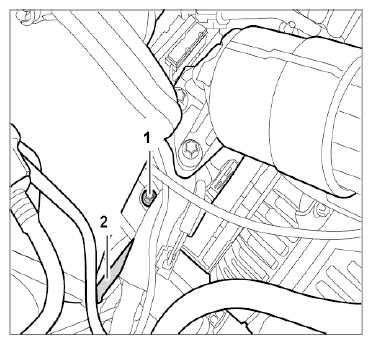

- Install holder -1-
for oil filler neck.
- 8.1. Insert holder and fit internal Torx screw (T27, M6 x 12) -2-
at the bottom.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 8.2. Fit internal Torx screw (T27, M6 x 12) -2- at the top.
- 8.3. Tighten both screws.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 8.4. Insert oil filler neck and close the holder.
- 8.1. Insert holder and fit internal Torx screw (T27, M6 x 12) -2-
at the bottom.
- Fit air-conditioning compressor.
→ 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR .

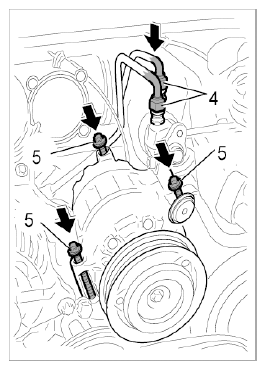

- 9.1. Fit compressor. Fit and tighten three M8 screws -5-
.
→ Tightening torque: 23 Nm (17 ft. lb.)
- 9.2. Fit and tighten fuel lines -4-
on the fuel cooler. Counter at the fuel cooler (a/f 14) when tightening the union nuts.
→ Tightening torque: 25 Nm (19 ft. lb.)

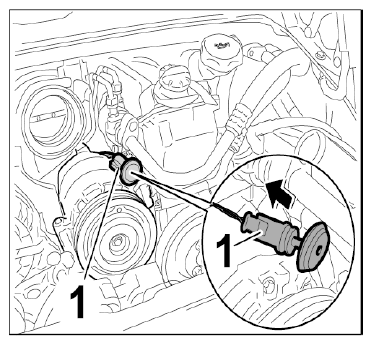

- 9.3. Insert engine compartment temperature sensor -1- into the rubber holder.
- 9.4. Secure the fuel line -2-
with an external Torx screw (E10, M6 x 12).
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 9.1. Fit compressor. Fit and tighten three M8 screws -5-
.
