Installing Intake-Air Distributor, Side 1-3
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
Information
Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
- Prepare intake-air distributor for installation.
- 1.1. Clean sealing surfaces on the intake-air distributor and cylinder head.

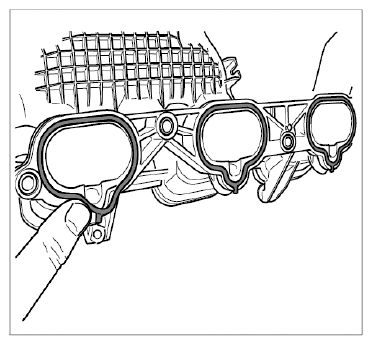

- 1.2. Fit new molded seals on the intake-air distributor. Then grease them with Kluber Syntheso Glep.
- Prepare the fuel collection pipe for re-installation.

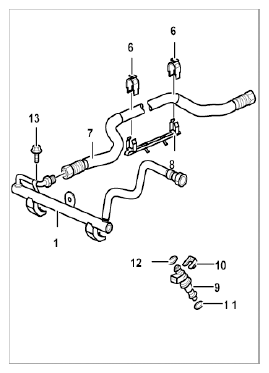

- 2.1. Fit fuel injectors -9- with new O-rings -11 and 12- . Grease O-rings lightly with VP 881 (Porsche Part No.: 000.043.207.35).
- 2.2. Fit fuel injectors into the fuel collection pipe according to the marking and secure them with spring clamps -10- .
- Install intake-air distributor, side 1-3.
Use a bar magnet to fit hidden screws and a 5-mm socket-wrench insert with a ball joint to tighten them.

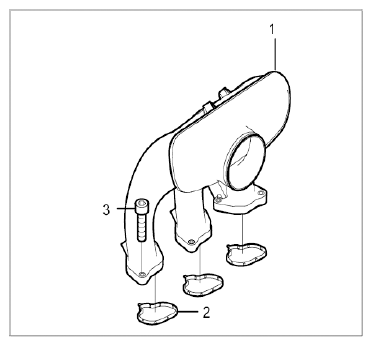

- 3.1. Insert the intake-air distributor -1-
and fit and tighten screws -3-
.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 3.1. Insert the intake-air distributor -1-
and fit and tighten screws -3-
.
- Fit fuel collection pipe with fuel injectors for side 4-6.
- 4.1. Insert fuel injectors into the relevant openings on the intake-air distributor.
- 4.2. Secure the fuel collection pipe to the intake-air distributor with two external Torx screws (E10, M6 x 12).
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- Fit the fuel line and wire harness.
- 5.1. Connect the fuel line. Fit and tighten union nut (a/f 19) -2-
and always counter while doing this (a/f 17).
→ Tightening torque: 30 Nm (22 ft. lb.)
- 5.2. Connect cable plugs for fuel injectors 1-3 -arrows- .

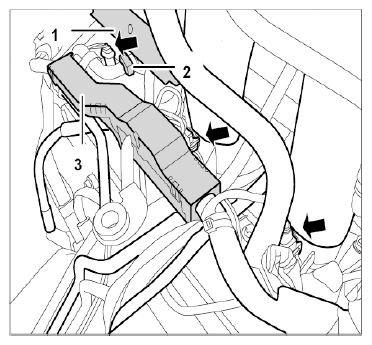

- 5.3. Fit cable rail -3- at the fuel collection pipe.
- 5.1. Connect the fuel line. Fit and tighten union nut (a/f 19) -2-
and always counter while doing this (a/f 17).

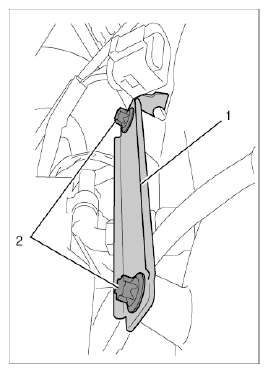

- Fit holder -1-
for cable plug for secondary-air pump.
- 6.1. Fit and tighten two external Torx screws (E10, M6 x 12) -2- .
- Fit intake air line for side 1-3.

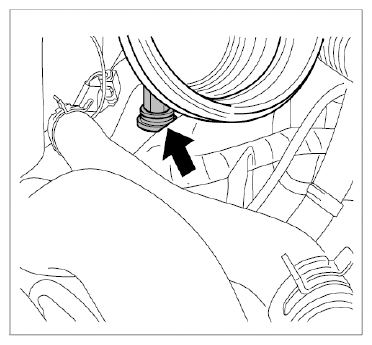

- 7.1. Position intake air line in the bracket -arrow- in the engine compartment.

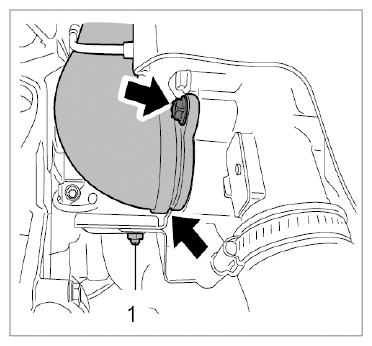

- 7.2. Fit intake air line together with new O-ring and retaining bracket at the turbocharger flange and press it in.

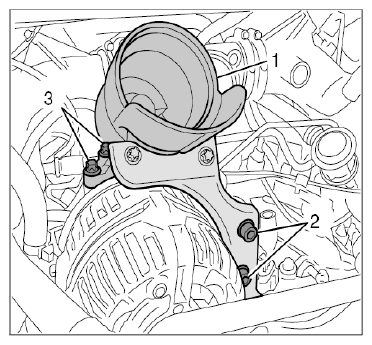

- 7.3. Fit and tighten two screws -arrows-
and one M6 collar nut -1-
.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- Install secondary-air pump -1-
.
→ 266519 REMOVING AND INSTALLING SECONDARY-AIR PUMP .
- 8.1. Securing secondary-air pump to holder:
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- Secondary-air pump
- Connecting line on cylinder bank 4-6, top
- Fastening screws on holder
- Cable plug
- 8.1. Securing secondary-air pump to holder:

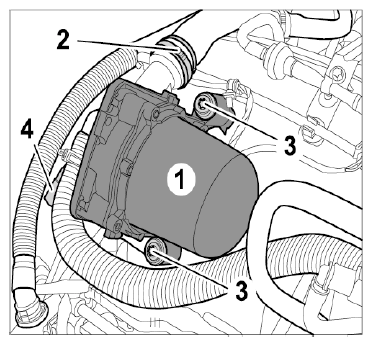

- Install oil-filter console -1-
with a new seal.
→ 173319 REMOVING AND INSTALLING OIL-FILTER CONSOLE .
- 9.1. Securing oil-filter console to flange -3-
:
→ Tightening torque: 23 Nm (17 ft. lb.)
- 9.2. Securing oil-filter console to holder -2-
:
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 9.1. Securing oil-filter console to flange -3-
:
- Fit the oil filter.

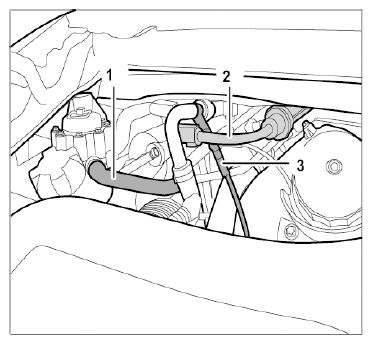

- Fit lines on left of engine compartment.
- 11.1. Open tie-wrap and move lines into installation position.
- 11.2. Connect coolant breather hose -1- to coolant reservoir.
- 11.3. Connect carbon canister line -2- .
- 11.4. Connect the vacuum line -3- .

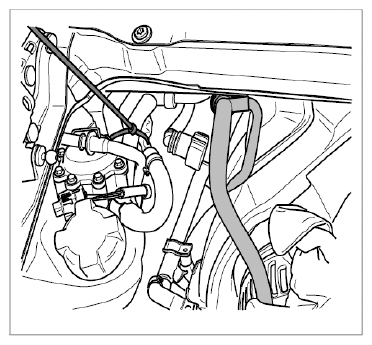

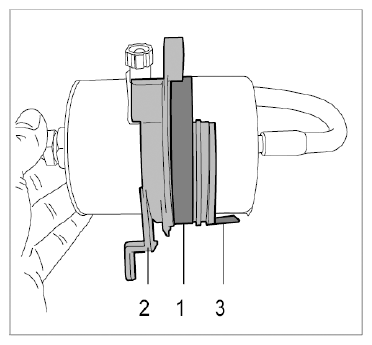

- Install fuel filter.
