Installing Center Intake-Air Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Connect line connections to the center intake-air distributor.
1. 1.1. Fit new single-lug clips on the vacuum lines -1 and 2- and fit the lines.
2. 1.2. Fit rapid-action coupling -3- and close the spring band clamp -4- .

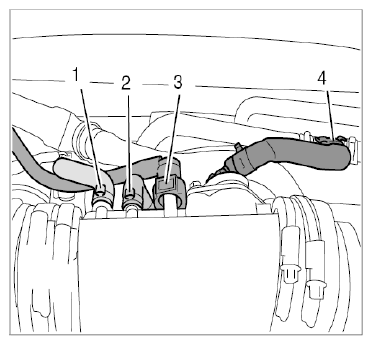

  Fig 1: Identifying Centre Intake-Air Distributor Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the center intake-air distributor.
1. 2.1. Position the intake-air distributor and slide on rubber sleeves.
2. 2.2. Align and tighten the spring band clamps -3- .
  → Tightening torque: 3 Nm (2 ft. lb.)
3. 2.3. Fit the strut -1- by screwing in and tightening two external Torx screws (E10, M6 x 12) -2- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

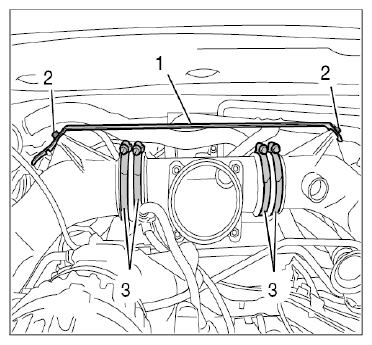

  Fig 2: Identifying Centre Intake-Air Distributor And Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
