Component Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

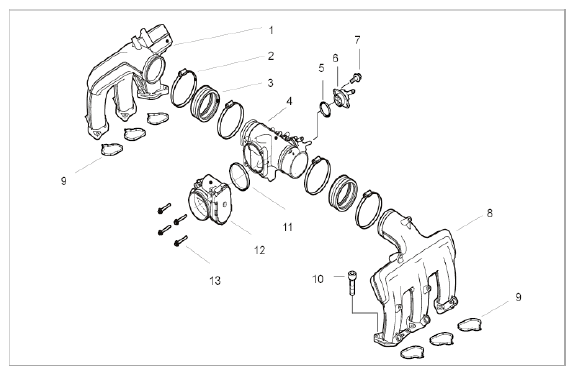

Fig 1: Overview Of Intake-Air Distributor Component
G09828746Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake-air distributor 1-3 (left)
  2. Screw-type clamp, 70-90 x 9 (4 ea.)
  3. Rubber sleeve (2 ea.)
  4. Centre intake-air distributor
  5. Sealing ring, 26 x 3 (replace)
  6. Check valve
  7. External Torx screw, M6 x 16
  8. Intake-air distributor 4-6 (right)
  9. Molded seal (replace)
  10. Hexagon socket head bolt (a/f 5) with washer, M6 x 25
  11. Throttle body sealing ring (replace)
  12. Throttle housing with electronic accelerator
  13. External Torx screw, M6 x 50
