Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Slowly raise engine to its installation position using the jack.
Tighten two M12 special nuts (inner Torx, screw insert T55) -1- at the engine mounting (hydraulic mount) on the left and right.
→ Tightening torque: 85 Nm (63 ft. lb.)

Fig 1: Identifying Engine Carrier And Engine Mounting (Cylinders 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure cable duct onto the intake distributor.
1. 3.1. Position and tighten M6 x 16 outer Torx screw (E10) -1- at the intake distributor 1-3.

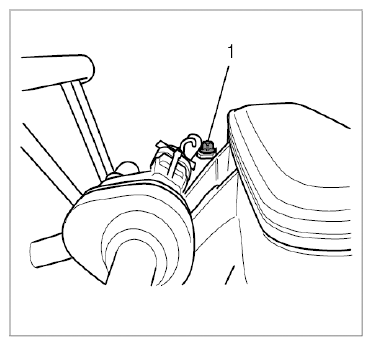

  Fig 2: Identifying Intake Distributor Screw 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Position and tighten M6 x 16 outer Torx screw (E10) -1- at the intake distributor 4-6.

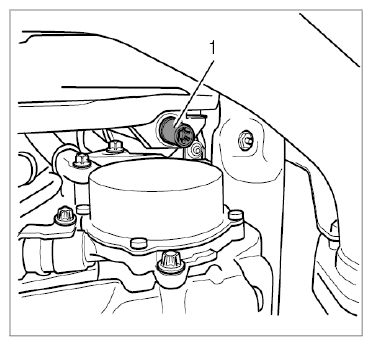

  Fig 3: Identifying Intake Distributor Screw 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install resonance tube.
→ 247419 REMOVING AND INSTALLING RESONANCE TUBE .
Check for leaks at intake-air distributor.
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Connect the battery.
→ 2X00IN02 WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
