Removing Intake-Air Distributor - Side 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Release drive belt.
→ 137819 REMOVING AND INSTALLING DRIVE BELT .
Remove generator.
→ 272219 REMOVING AND INSTALLING GENERATOR .
Open rapid-action coupling of tank vent line, unclip line and set it aside.
Pull engine compartment temperature sensor out of bracket on intake-air distributor and set it aside.
Remove support -3- for oil filler pipe and coolant ventilation.
1. 5.1. Unclip coolant ventilation line -1- .
2. 5.2. Unscrew three M6 x 12 outer Torx screws (E10) -2- and remove support.

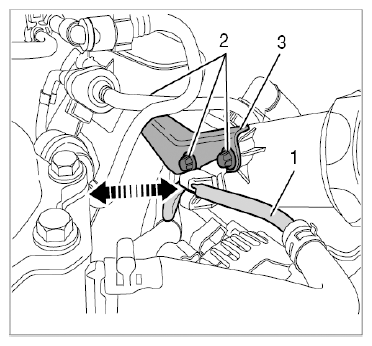

  Fig 1: Removing Oil Filler Pipe Support And Vent Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen intake-air distributor 1-3.
1. 6.1. Unscrew six M6 x 35 outer Torx screws (E10). Pull out the screws using a bar magnet to ensure that they are not lost because of the poor accessibility in some areas.
2. 6.2. Tool recommendation for 1/4 inch tool: ratchet spanner, long extension, E10 Torx socket wrench insert.
Remove intake-air distributor 1-3 from the engine compartment over the oil filler pipe.
Replace molded seals.
The intake-air distributor can be cleaned in a parts washing machine without aggressive cleaning agents.
Clean sealing faces on cylinder head.
