Tightening Sequence

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Position screws in tightening sequence and then tighten to the prescribed torque.

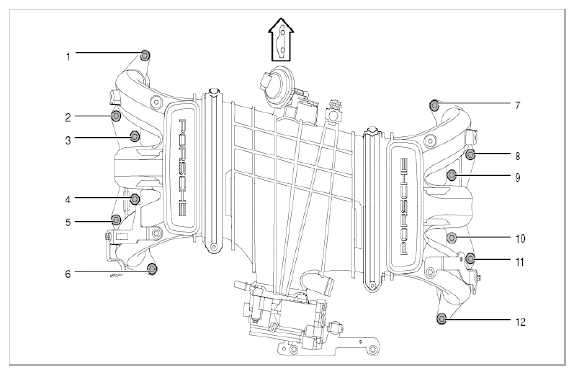

Fig 1: Intake-Air Distributor Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
