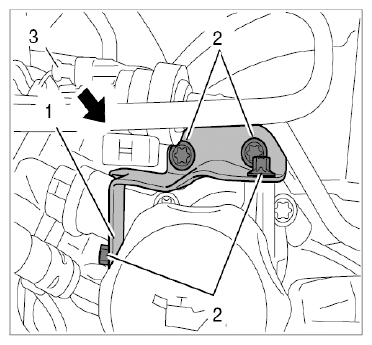

Attach oil filler tube support -1- with M6 x 12 external Torx screws (E10) -2- .
1. 1.1. Tighten the screws.
  → Tightening torque: 10 Nm (7.4 ft. lb.)
2. 1.2. Attach tank vent with rubber grommet to support -Arrow- .
3. 1.3. Connect cable plug -3- and connect vent line to the upper rapid-action coupling.

  Fig 1: Locating Oil Filler Pipe And Tank Vent Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten two M6 x 20 external Torx screws (E10) at the oil filler pipe flange.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
Install throttle housing with new sealing ring.
→ 244219 REMOVING AND INSTALLING THROTTLE HOUSING .
Attach connectors and fasten M6 hexagon nut on throttle housing.
1. 4.1. Fit and tighten M6 hexagon nut -1- on the throttle housing support.
  → Tightening torque: 6 Nm (4.4 ft. lb.)

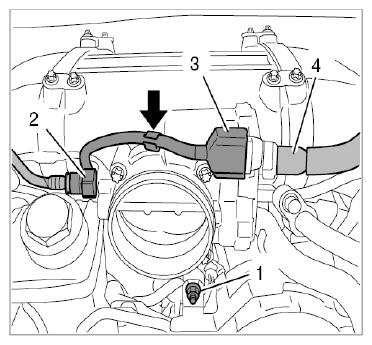

2. 4.2. Connect electronic throttle cable plug -3- and clip in -Arrow- , Attach rapid action couplings at tank vent -2- and crankcase ventilation -4- .

  Fig 2: Locating Throttle Housing Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

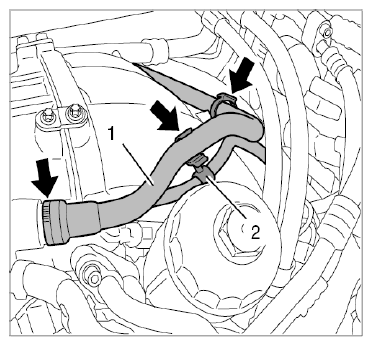

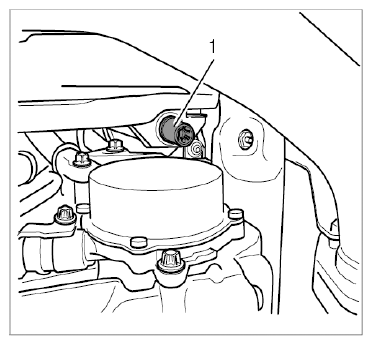

3. 4.3. Clip in cable -2- for throttle connector and positive crankcase ventilation line -1- -Arrows- .

  Fig 3: Locating Positive Crankcase Ventilation Line And Throttle Adjuster Connector Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
Slowly raise engine to its installation position using the jack.
Tighten two M12 special nuts (inner Torx, screw insert T55) -1- at the engine mounting (hydraulic mount) on the left and right.
→ Tightening torque: 85 Nm (63 ft. lb.)
1. 6.1. Remove piece of wood from rear axle carrier if necessary.

  Fig 4: Identifying Engine Mounting (Hydraulic Mount) Special Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform intake-air distributor leak test.
→ 244601 CHECKING INTAKE-AIR DISTRIBUTOR FOR LEAKS .
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Connect the battery.
→ 2X00IN02 WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
