Removing Intake-Air Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Detach intake-air distributor.
1. 1.1. Unscrew eight M6 x 30 external Torx screws (E10, micro-encapsulated) in each case -1- .
2. 1.2. Remove screws using a bar magnet.
3. 1.3. Replace micro-encapsulated screws.
  1. M6 x 30 external Torx screws (E10, micro-encapsulated) - Replace screws.
  2. Intake-air distributor 1-3
  3. Central intake-air distributor
  4. Intake-air distributor 4-6

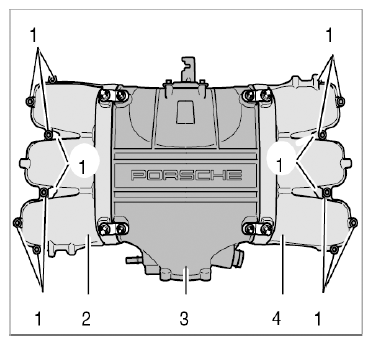

    Fig 1: Overview Of Intake-Air Distributor Screws
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew plastic clip at intake-air distributor 4-6 (positive crank case ventilation fastening).
Unclip electric control valve -1- from (rear) central intake-air distributor.

Fig 2: Identifying Central Intake-Air Distributor Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil filler pipe (aluminum) -1- , lift the intake-air distributor slightly for this purpose.
1. 4.1. Remove positive crankcase ventilation line -2- , remove two M6 x 20 external Torx screws (E10) -3- .

  Fig 3: Identifying Oil Filler Pipe
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Pay attention to the sleeves -1- on the oil filler pipe flange. Remove these before removing the oil filler pipe.

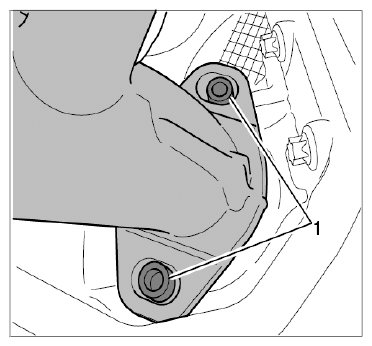

  Fig 4: Identifying Oil Filler Pipe Sleeves
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove intake-air distributor assembly -1- from the engine compartment over the generator -Arrow- .

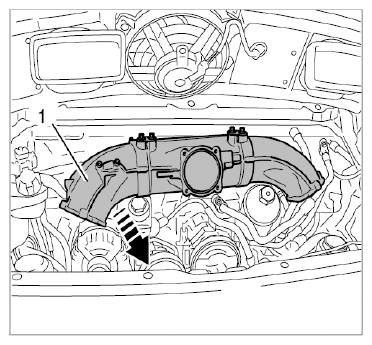

Fig 5: Lifting Intake-Air Distributor Out Of Engine Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace seals on intake pipes.
The intake-air distributor can be cleaned in a parts washing machine without aggressive cleaning agents.
Carefully clean and cover sealing faces on intake pipes.
