Removing Throttle Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Detach and remove rubber sleeve.
Release and pull off cable plug on the throttle housing and unclip cable.
Remove throttle housing.

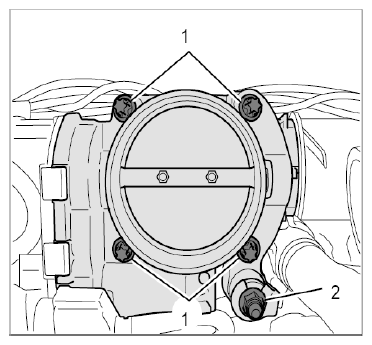

Fig 1: Identifying Throttle Housing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Loosen M6 fastening nut (a/f 10) -2- on the damping element.
2. 3.2. Unscrew four external Torx screws (E10, M6 x 40) -1- and remove the throttle housing.
Replace sealing ring on the intake-air distributor flange (middle).
