Installing Throttle Housing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Fit the throttle housing.

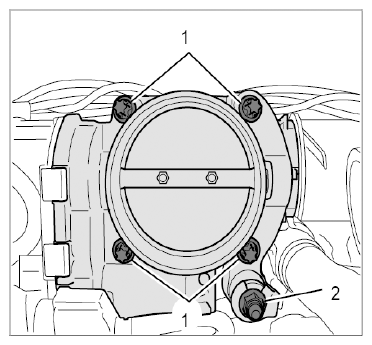

- 1.1. Fit throttle housing with four external Torx screws (E10, M6 x 40) -1-
and tighten screws. Make sure that the holder is fitted correctly on the damping element.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 1.2. Tighten M6 fastening nut (a/f 10) -2-
on the throttle valve holder.
→ Tightening torque: 6 Nm (4.5 ft. lb.)
- 1.1. Fit throttle housing with four external Torx screws (E10, M6 x 40) -1-
and tighten screws. Make sure that the holder is fitted correctly on the damping element.
- Fit cable plug on the throttle housing and clip cable into the sheetmetal clips.
- Fit rubber sleeve.
