Removing Throttle Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Component overview

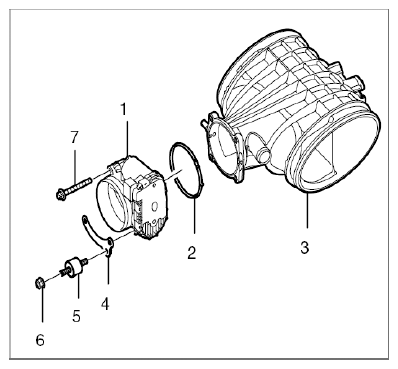

Fig 1: Overview Of Throttle Housing
G09828670Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Throttle housing
  2. Sealing ring, always replace
  3. Resonance tube
  4. Holder
  5. Rubber mounting, screw in by hand
  6. Collar nut → Tightening torque: 6 Nm (4.5 ft. lb.)
  7. External Torx screw, M6 x 50 → Tightening torque: 10 Nm (7.5 ft. lb.)
  1. Release and pull off cable plug on the throttle housing and expose the cable.
  2. Loosen M6 fastening nut on the rubber mounting.
  3. Remove four external Torx screws (M6 x 50) and take out throttle housing.
  4. Remove molded seal on the resonance tube flange and replace it.
