WM 244020 Removing And Installing Fuel Injectors (Turbo Coupe, Turbo CABRIO & Gt2): Information: Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

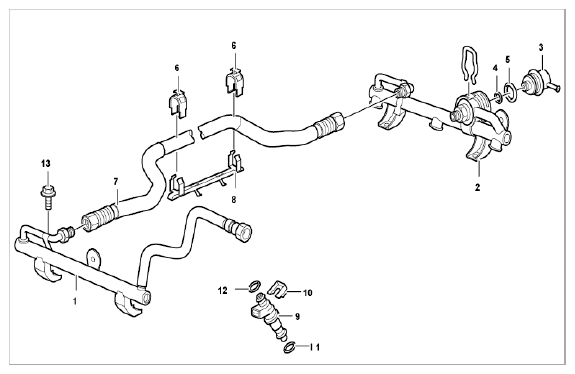

Fig 1: Overview Of Fuel Injectors, Fuel Collection Pipe And Lines
G09828631Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel collection pipe 1-3
  2. Fuel collection pipe 4-6
  3. Pressure regulator
  4. Sealing ring
  5. Sealing ring
  6. Clamp
  7. Fuel hose
  8. Guide rail
  9. Fuel injector
  10. Spring clamp
  11. O-ring
  12. O-ring
  13. M6 screw
