Installing Fuel Collection Pipe With Fuel Injectors

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Grease the three mounts for the fuel injectors on the fuel collection pipe with assembly grease VP 881 (Part No. 000.043.207.35).

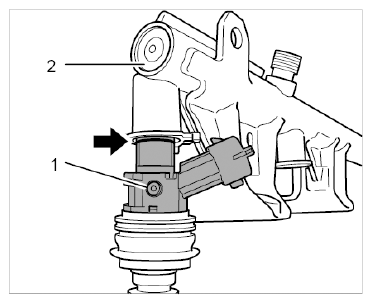

Position fuel injectors -1- in the fuel collection pipe -2- for fitting the spring clamps. Only press the injector in as far as the upper edge -arrow- .
1. 2.1. Always press the valve vertically (axially) into the mounts.

  Fig 1: Locating Fuel Injector Spring Clamps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit new spring clamps.

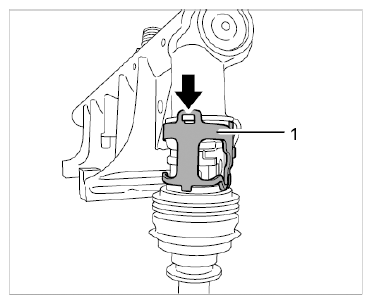

1. 3.1. Slide spring clamp -1- over the mounts and fuel injector from behind. The twist lock must be seated in the eye -arrow- .
  Twist lock.

  Fig 2: Locating Fuel Injector Spring Clamp Installation Position (Twist-Lock)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Hook in spring clamp -1- on both sides of the fuel collection pipe mount -arrow- .

  Fig 3: Locating Fuel Injector Spring Clamp
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

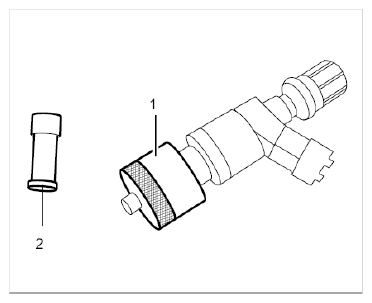

Pull off dowel sleeves -2- on the fuel injectors.

Fig 4: Identifying Assembly Sleeve And Teflon Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the fuel collection pipe with fuel injectors at the cylinder head.
1. 5.1. Fit fuel collection pipe according to tightening specifications.
Fit fuel connection line according to tightening specifications.
