Overview Of Fuel System In Engine Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

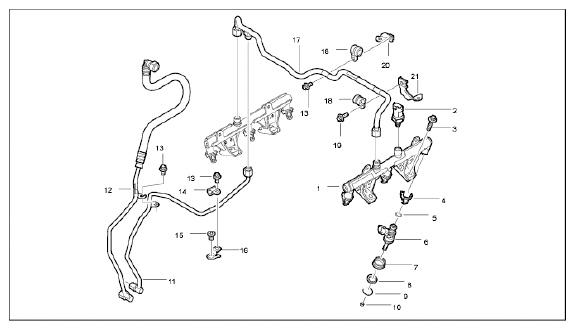

Fig 1: Overview Of Engine Fuel System Component
G09828575Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel collection pipe
  2. Pressure sensor
  3. Outer Torx screw, M6 x 30
  4. Injector spring clamp - always replace
  5. O-ring, 7.52 x 2.8 - always replace
  6. Fuel injector (high-pressure injector)
  7. Bellows with circlip - always replace
  8. Spacer ring
  9. Circlip
  10. Teflon sealing ring, 6.3 x 2.8 - always replace
  11. High-pressure line from pump to connecting line
  12. Low-pressure line to pump
  13. Outer Torx screw, M6 x 12
  14. Hose clamp, 8 x 15
  15. Screw plug, M12 x 1.5
  16. High-pressure line support
  17. High-pressure connecting line
  18. Hose clamp, 12 x 15
  19. Outer Torx screw, M6 x 16
  20. Centre connecting line support
  21. Connecting line support
