Removing Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Component overview:

Fig 1: Identifying Air Cleaner Housing And Rubber Sleeves

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cleaner housing
Rubber sleeves

Loosen screw-type clamps -1- on the intake air lines.

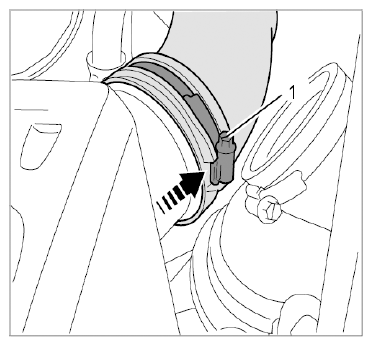

Fig 2: Removing Intake Air Line On Air Cleaner Housing And Cylinder Bank 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

View of cylinder bank 4-6:

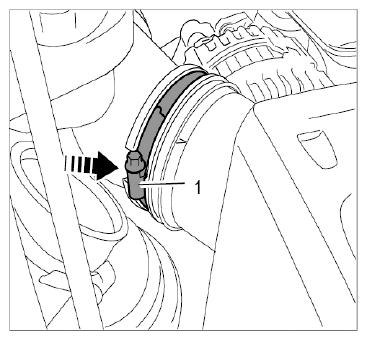

Fig 3: Removing Intake Air Line On Air Cleaner Housing And Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the air cleaner housing up fully and guide it out of the engine compartment.
1. 2.1. Be careful with the rubber mountings (these can fall into the belt drive).

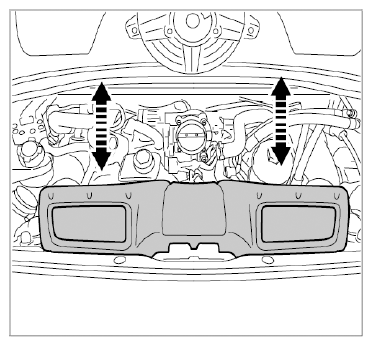

  Fig 4: Removing/Installing Air Cleaner Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
