Installing Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Grease rubber mountings lightly (with Vaseline) and fit them on the rear support.
Guide the air cleaner housing into the engine compartment and press it into the rubber mountings.

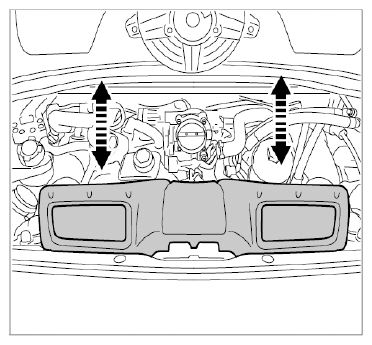

Fig 1: Removing/Installing Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide intake air lines onto the supports on the air cleaner housing and tighten screw-type clamps.
Make sure that the screw heads on the screw-type clamps are seated in the cut-outs for the intake air lines -arrow-.

→ Tightening torque: 3 Nm (2 ft. lb.)

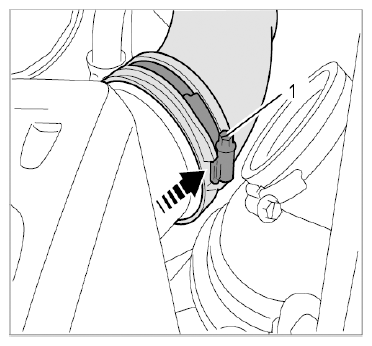

Fig 2: Installing Intake Air Line On Air Cleaner Housing And Cylinder Bank 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

View of cylinder bank 4-6:

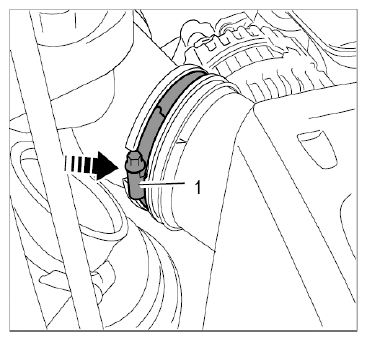

Fig 3: Installing Intake Air Line On Air Cleaner Housing And Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
