Removing Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull cable plug -1-  off the boost-pressure sensor.
  2. Loosen screw-type clamp -arrow-  on the throttle housing.

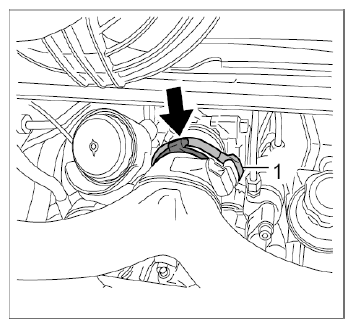

    Fig 1: Locating Screw-Type Clamp On Throttle Housing
    G09828565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Loosen screw-type clamps -arrows-  on the pressure pipe.

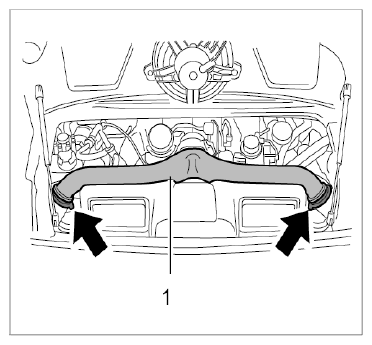

    Fig 2: Locating Screw-Type Clamps On Pressure Pipe
    G09828566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull pressure pipe out of the hoses and remove it.
  5. Release secondary air line -3-  and pull it off -arrow-  .
  6. Release and pull off cable plugs on the two hot-film mass air flow (MAF) sensors -2-  .
  7. Loosen screw-type clamps -1-  on the two MAF sensors.

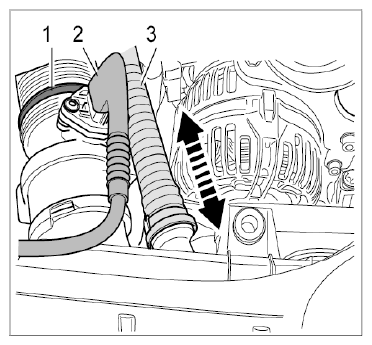

    Fig 3: Releasing Secondary Air Line On Air Cleaner Housing
    G09828567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Pull air cleaner housing with rubber sleeves out of the cut-outs in the body and guide them out of the engine compartment.
