Installing Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Degrease intake manifold flange on the hot-film mass air flow sensors and inner intake manifold.

Guide air cleaner housing into the engine compartment and press it and the rubber sleeves into the cut-outs in the body.
Slide hoses onto the MAF sensors. The white markings -1- must no longer be visible.
Position screw head on clamps into the cut-outs provided -arrow- .

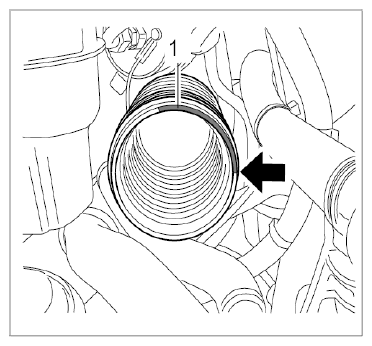

Fig 1: Identifying White Markings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten screw-type clamps -1- .
Connect cable plugs on the two MAF sensors -2- . These must lock with an audible click.
Connect secondary air line -3- . The connector must engage audibly.

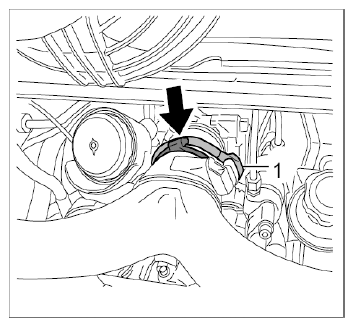

Fig 2: Connecting Secondary Air Line On Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install pressure pipe.
Tighten screw-type clamps -arrows- .

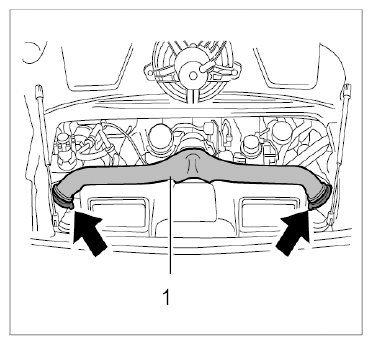

Fig 3: Locating Screw-Type Clamps On Pressure Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten screw-type clamp -arrow- .
Plug in connector for boost-pressure sensor -1- . The plug must lock with an audible click.

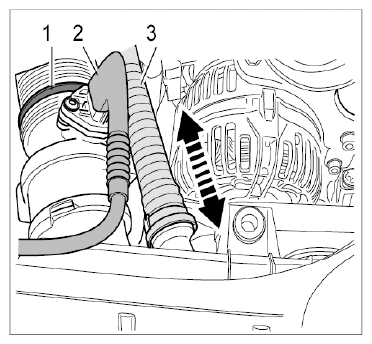

Fig 4: Locating Screw-Type Clamp And Boost-Pressure Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
