Disassembling And Assembling Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

3.8-Liter air filter only:

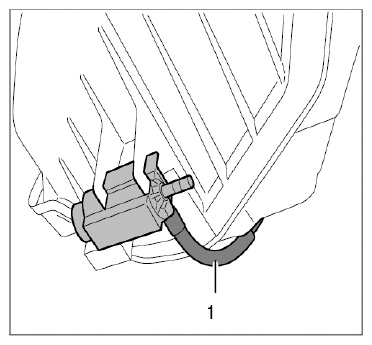

Pull off vacuum line on solenoid valve for tuning flap -1- .

Fig 1: Identifying Vacuum Line On Tuning Flap Solenoid Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3.8-Liter and 3.6-Liter air filter:

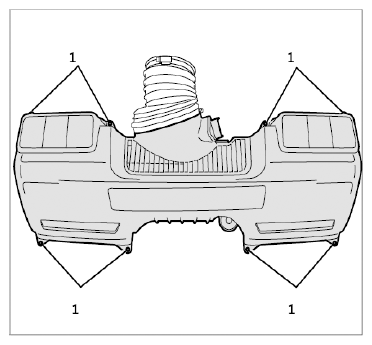

Unscrew eight Torx tapping screws (T25 screw insert) -1- on the upper part of the air filter.

Fig 2: Identifying Screws On Top Half Of Air Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

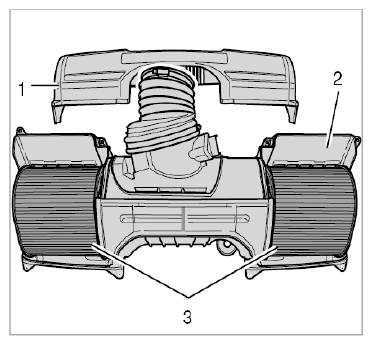

Lift off upper part -1- .

Fig 3: Identifying Lower Part Of Air Filter With Air-Cleaner Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

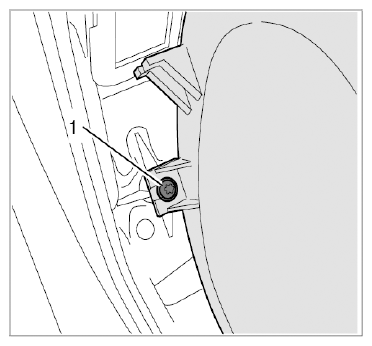

Unscrew one Torx tapping screw (T20 screw insert) -1- on each air-cleaner element and pull out the element.

Fig 4: Identifying Screw On Air-Cleaner Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3.8-Liter air filter only:

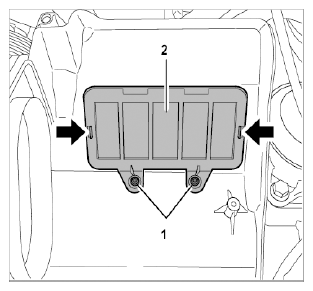

Remove tuning flaps -2- .
1. 5.1. Unscrew two Torx tapping screws (T25 screw insert) -1- and unclip flaps -arrows- .

  Fig 5: Locating Tuning Flaps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Assemble in reverse order.
→ Tightening torque: 2 Nm (1.5 ft. lb.)

→ Tightening torque: 3 Nm (2 ft. lb.)

→ Tightening torque: 2 Nm (1.5 ft. lb.)
