Removing Air-Cleaner Element

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Pull the air cleaner cover straight up out of the air cleaner housing.

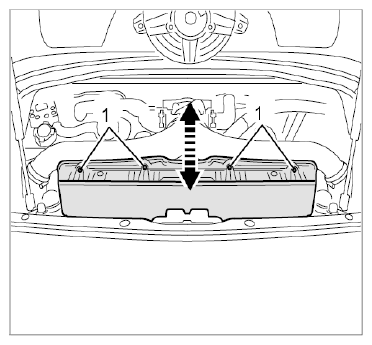

Fig 1: Removing/Installing Air Cleaner Housing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew four fastening screws (internal Torx T25) -1- .

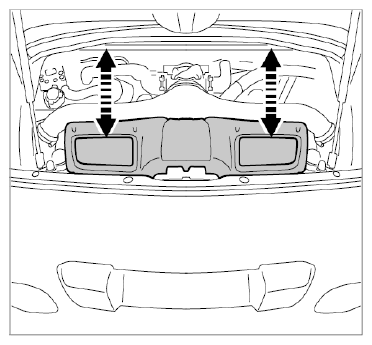

Fig 2: Removing Air-Cleaner Element Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tilt the air-cleaner element to the rear and lift it up to remove it from the air cleaner housing.
