Installing Air-Cleaner Element

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Insert the air-cleaner element springs into the grooves on the air cleaner housing from above.
Insert the air filter and secure it with four fastening screws (internal Torx T25) -1- .
1. 2.1. Tighten the screws.
  → Tightening torque: 3 Nm (2 ft. lb.)

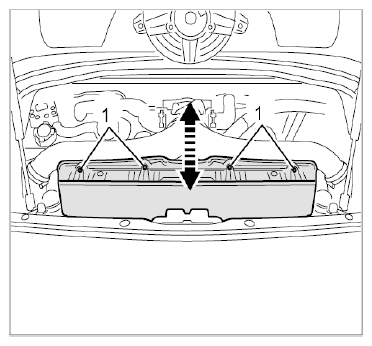

  Fig 1: Installing Air-Cleaner Element Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the cover straight onto the brackets from above and clip it in.

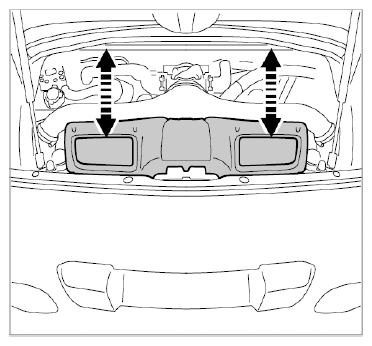

Fig 2: Removing/Installing Air Cleaner Housing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
