Installing Air-Cleaner Element

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert springs of the air-cleaner element into the grooves on the air cleaner housing.
Position air cleaner and insert and tighten the four internal Torx screws -arrow- .

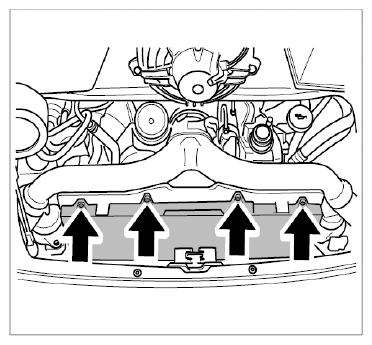

Fig 1: Locating Air-Cleaner Element Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lightly grease the rubber sleeves on the brackets (with acid-free grease).
Position the cover -1- vertically from above -arrow- onto the brackets and clip it in.

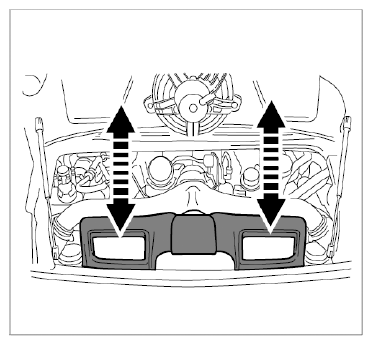

Fig 2: Installing Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
