Removing Air-Cleaner Element

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

3.8-Liter air filter only:

Unclip solenoid valve for tuning flap.

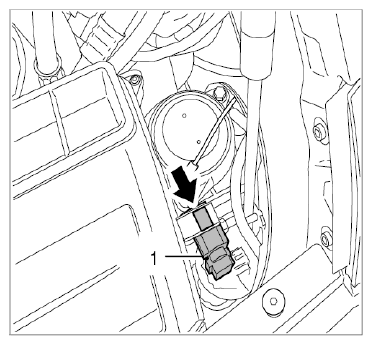

Fig 1: Locating Tuning Flap Solenoid Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3.8-Liter and 3.6-Liter air filter:
Unscrew eight Torx tapping screws (T25 screw insert) on the upper part of the air filter.

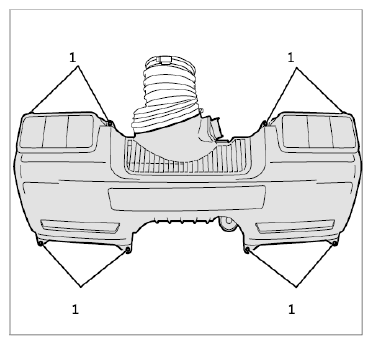

Fig 2: Identifying Upper Air Filter Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift off upper part.

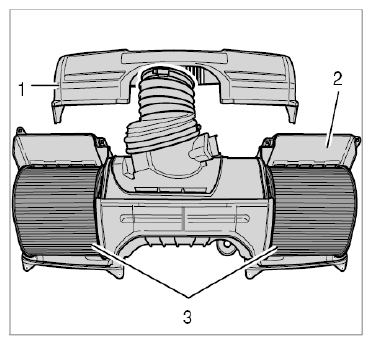

Fig 3: Identifying Lower Part Of Air Filter With Air-Cleaner Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew one Torx tapping screw (T20 screw insert) on each air-cleaner element and pull out the element.

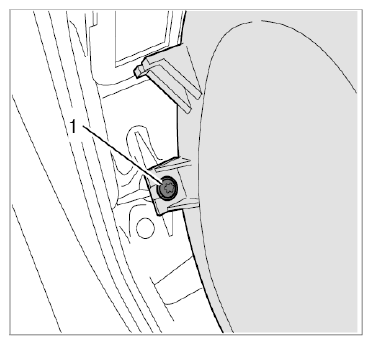

Fig 4: Identifying Screw On Air-Cleaner Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Use only warm water with washing-up liquid to clean the air cleaner housing.
- Harsh cleaning agents must not be used!
Use only warm water with some washing-up liquid to clean the housing. Do not use harsh cleaning agents.
