Installing Air-Cleaner Element

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Carefully tighten the tapping screws on the air cleaner housing by hand.

The air-cleaner element can be installed from either side.

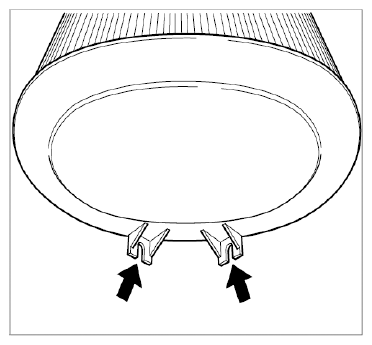

Fig 1: Locating Screw-Type Tabs On Air-Cleaner Element

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Slide the air-cleaner elements onto the sealing flanges at the left and right.
1. 1.1. Position screw-type tabs and screw in one Torx tapping screw (T20 screw insert) on each one. Tighten the screws carefully.
  → Tightening torque: 2 Nm (1.5 ft. lb.)

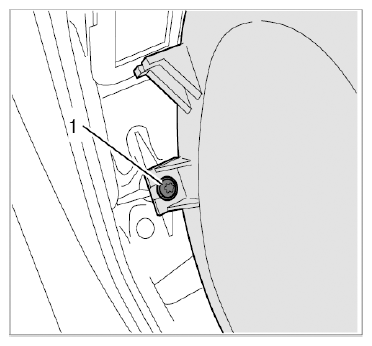

  Fig 2: Identifying Air-Cleaner Element Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position upper half of air filter and secure in place with eight Torx tapping screws (T25 screw insert). Tighten the screws carefully.

2.1. Check that the top half is seated correctly.

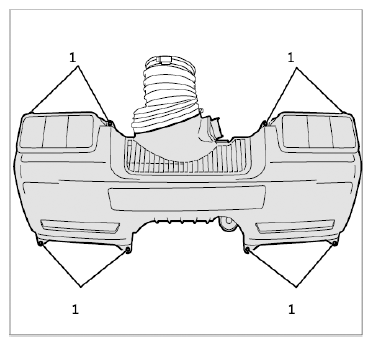

Fig 3: Identifying Screws On Top Half Of Air Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Top half of air filter	Torx tapping screw	Tightening torque	3 Nm (2 ft. lb.)

Connect cable plug for hot-film mass air flow sensor -1- and clip in cable at the air cleaner housing -arrows- .

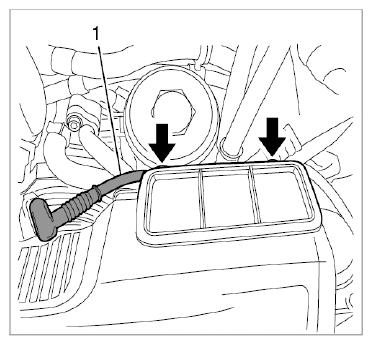

Fig 4: Locating Cable Guide On Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3.8-Liter air filter only:
Clip in solenoid valve for tuning flap.

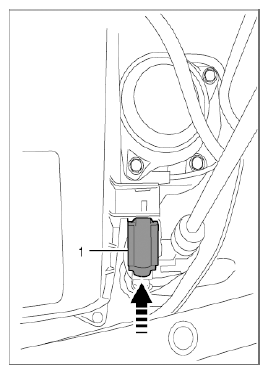

Fig 5: Installing Tuning Flap Solenoid Valve Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
