Removing right air guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage air guide -C-  at the heater/air-conditioning unit and at the air guide -D-  .

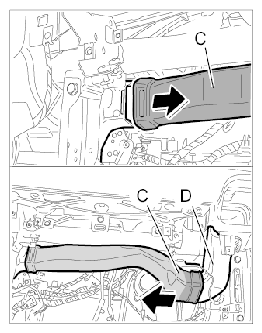

    Fig 1: Disengaging Air Guide
    G09830198Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. If the air guide -D-  has to be removed, first remove the air vent at the right door window. → Removing Air Vent At Door
  3. Disengage air guide -D-  by pulling it upward at the mounting bracket, and pull it out in a downward direction to remove it.

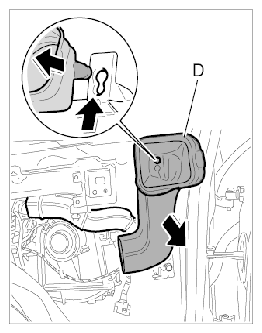

    Fig 2: Disengaging Air Guide
