Removing Air Vent At Door

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

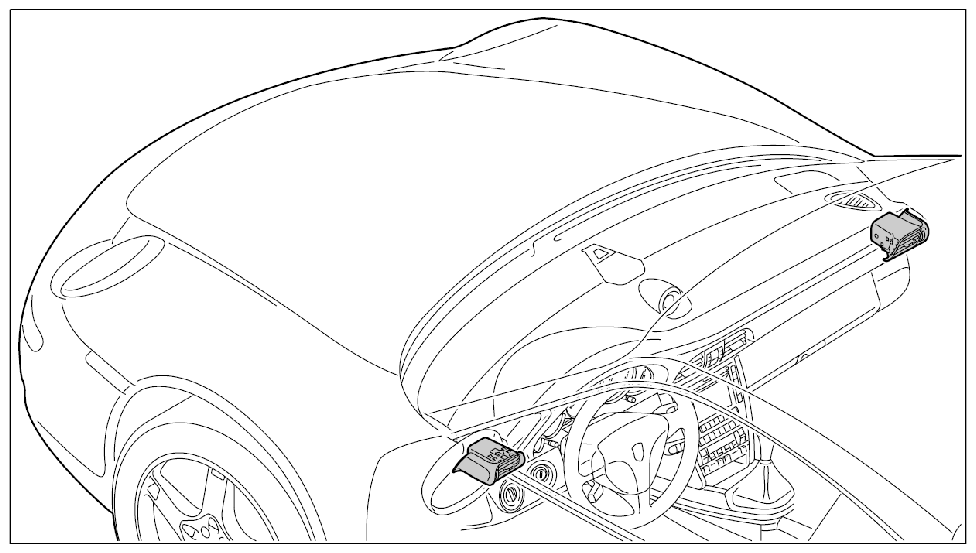

Fig 1: Identifying Installation Position Of Air Vent At Door

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

With a screwdriver through the top air slot, release the retaining clips -A- and pull the air vent out of the dashboard.

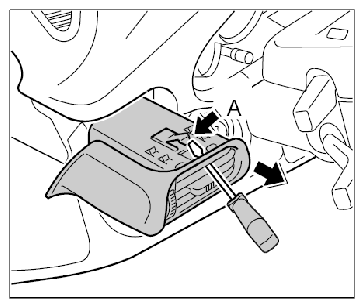

Fig 2: Releasing Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull apart the electrical plug connection and remove the air vent.

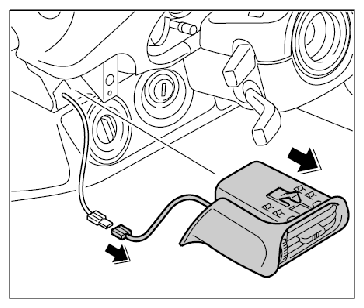

Fig 3: Removing Electrical Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
