Installing right air guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

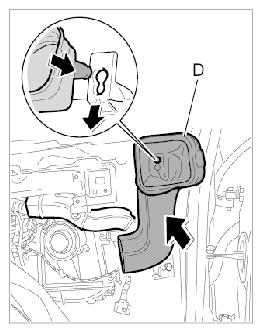

Engage the air guide -D- at the mounting bracket.

Fig 1: Engaging Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

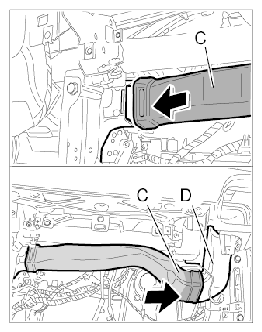

Connect air guide -C- at the heater/air-conditioning unit and at the air guide -D- .

Fig 2: Connecting Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install air vent at door window if necessary. → Installing Air Vent At Door
